SN74ALVCH162334

*Member of the Texas Instruments Widebus™ Family
*EPIC™ (Enhanced-Performance Implanted CMOS) Submicron Process
*Output Port Has Equivalent 26-Ω Series Resistors,
  So No External Resistors Are Required
*Designed to Comply With JEDEC 168-Pin
  and 200-Pin SDRAM Buffered DIMM Specification
*ESD Protection Exceeds 2000 V Per
  MIL-STD-883, Method 3015; Exceeds 200 V
  Using Machine Model (C = 200 pF, R = 0)
*Latch-Up Performance Exceeds 250 mA Per JESD 17
*Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors
*Package Options Include Plastic Shrink
  Small-Outline (DL), Thin Shrink
  Small-Outline (DGG), and Thin Very
  Small-Outline (DGV) Packages

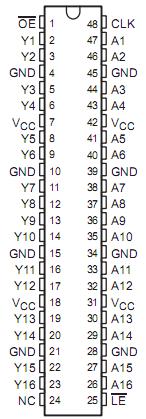

      This SN74ALVCH162334 16-bit universal bus driver is designed for 1.65-V to 3.6-V V_CC operation.

      Data of SN74ALVCH162334  flow from A to Y is controlled by the output-enable (OE) input. The device operates in the transparent mode when the latch-enable (LE) input is low. When LE is high, the A data is latched if the clock (CLK) input is held at a high or low logic level. If LE is high, the A data is stored in the latch/flip-flop on the low-to-high transition of CLK. When OE is high, the outputs are in the high-impedance state.

      The output port includes equivalent 26-Ω series resistors to reduce overshoot and undershoot. To ensure the high-impedance state of SN74ALVCH162334 during power up or power down, OE should be tied to V_CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

      Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level.The SN74ALVCH162334 is characterized for operation from 40°C to 85°C.
