Product Details

Description



Features:

*Member of the Texas Instruments Widebus™Family
*EPIC™ (Enhanced-Performance Implanted CMOS) Submicron Process
*Output Ports Have Equivalent 26-Ω Series Resistors, So No External Resistors Are Required
*Latch-Up Performance Exceeds 250 mA Per JESD 17
*Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors
*Package Options Include Plastic 300-mil
  Shrink Small-Outline (DGG), Thin Shrink
  Small-Outline (DL), and Thin Very
  Small-Outline (DGV) Packages

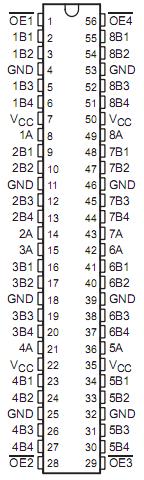

Pinout

Connection Diagram


Specifications

Supply voltage range,   VCC. . . . . . . . . .. . . . . .. . . . . . . . . . . . . -0.5 V to 4.6V
Input voltage range, VI(see Note 1). . . . . . . . . .. . . ...  ...   .. . -0.5 V to  4.6 V
Onput voltage range, VO(see Note 1 and 2). . . . . . . ... . -0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0  )  .. . . . . . . . . .. . . . . .. . . . . .. . . . . . . .-50mA
Onput clamp current, IOK (VO < 0 ). . .  .. . . . . .. . . . . .. . . . . .. . . . . . . . -50mA
Continuous output current,IO .. . . . . .. . . . . .. . . . . .. . . . . .. . . ... ... . . ±50mA
Continuous current through VCC or GND .. . . . . . . . . . . . .. . . . . .. . . .±100mA
Package thermal impedance, JA (see Note 3): DGG package  . . . .. . 81°C/W
                                                                           DGV package  . . . . . .86°C/W
                                                                           DL package  . . . . . ...74°C/W
Storage temperature range, Tstg  . . . . .  . . . . .  . . . . .  . . . 65°C to 150°C


Description

      This SN74ALVCH162344 1-bit to 4-bit address driver is designed for 1.65-V to 3.6-V VCC operation.

      The SN74ALVCH162344 is used in applications in which four separate memory locations must be addressed by a single address.

      The outputs, which are designed to sink up to 12 mA, include equivalent 26-Ω resistors to reduce overshoot and undershoot. To ensure the high-impedance state during power up or power down, the output enable (OE) inputs should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level.The SN74ALVCH162344 is characterized for operation from 40°C to 85°C.
