SN74ALVCH16334

Features: *Member of the Texas Instruments Widebus™Family*EPIC™  (Enhanced-Performance Implanted CMOS) Submicron Process*Designed to Comply With JEDEC 168-Pin and 200-Pin SDRAM Buffered DIMM Specification*ESD Protection Exceeds 2000 V Per MIL-STD-883, Method 3015; Exce...

product image

SN74ALVCH16334 Picture
See larger image
SeekIC No. : 004498283 Detail

SN74ALVCH16334: Features: *Member of the Texas Instruments Widebus™Family*EPIC™  (Enhanced-Performance Implanted CMOS) Submicron Process*Designed to Comply With JEDEC 168-Pin and 200-Pi...

SN74ALVCH16334 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74ALVCH16334
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*Member of the Texas Instruments Widebus™Family
*EPIC™  (Enhanced-Performance Implanted CMOS) Submicron Process
*Designed to Comply With JEDEC 168-Pin
  and 200-Pin SDRAM Buffered DIMM Specification
*ESD Protection Exceeds 2000 V Per
  MIL-STD-883, Method 3015; Exceeds 200 V
  Using Machine Model (C = 200 pF, R = 0)
*Latch-Up Performance Exceeds 250 mA Per JESD 17
*Bus Hold on Data Inputs Eliminates the
  Need for External Pullup/Pulldown Resistors
*Package Options Include Plastic Shrink
  Small-Outline (DL), Thin Shrink
  Small-Outline (DGG), and Thin Very
  Small-Outline (DGV) Packages


Pinout

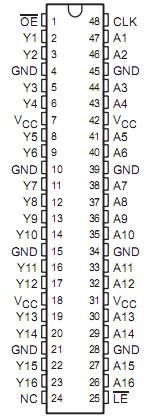

Connection Diagram


Specifications

Supply voltage range,   VCC. . . . . . . . . .. . . . . .. . . . . . . . . . . . . -0.5 V to 4.6V
Input voltage range, VI(see Note 1). . . . . . . . . .. . . ...  ...   .. . -0.5 V to  4.6 V
Onput voltage range, VO(see Note 1 and 2). . . . . . . ... . -0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0  )  .. . . . . . . . . .. . . . . .. . . . . .. . . . . . . .-50mA
Onput clamp current, IOK (VO < 0 ). . .  .. . . . . .. . . . . .. . . . . .. . . . . . . . -50mA
Continuous output current,IO .. . . . . .. . . . . .. . . . . .. . . . . .. . . ... ... . . ±50mA
Continuous current through VCC or GND .. . . . . . . . . . . . .. . . . . .. . . .±100mA
Package thermal impedance, JA (see Note 3): DGG package  . . . .. . 89°C/W
                                                                           DGV package  . . . . . .93°C/W
                                                                           DL package  . . . . . ...94°C/W
Storage temperature range, Tstg  . . . . .  . . . . .  . . . . .  . . . 65°C to 150°C


Description

      This SN74ALVCH16334 16-bit universal bus driver is designed for 1.65-V to 3.6-V VCC operation.

      Data flow from A to Y is controlled by the output-enable (OE) input. The SN74ALVCH16334 device operates in the transparent mode when the latch-enable (LE ) input is low. When LE  is high, the A data is latched if the clock (CLK) input is held at a high or low logic level. If LE  is high, the A data is stored in the latch/flip-flop on the low-to-high transition of CLK. When OE is high, the outputs are in the high-impedance state.

      To ensure the high-impedance state of SN74ALVCH16334 during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

      Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level. The SN74ALVCH16334 is characterized for operation from 40°C to 85°C.
