SN74ALVCH16344

Features: *Member of the Texas Instruments Widebus™ Family*EPIC™ (Enhanced-Performance Implanted CMOS) Submicron Process*Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors*Latch-Up Performance Exceeds 250 mA Per JESD 17*Package Options Include Pl...

product image

SN74ALVCH16344 Picture
See larger image
SeekIC No. : 004498284 Detail

SN74ALVCH16344: Features: *Member of the Texas Instruments Widebus™ Family*EPIC™ (Enhanced-Performance Implanted CMOS) Submicron Process*Bus Hold on Data Inputs Eliminates the Need for External ...

SN74ALVCH16344 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74ALVCH16344
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*Member of the Texas Instruments Widebus™ Family
*EPIC™ (Enhanced-Performance Implanted CMOS) Submicron Process
*Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors
*Latch-Up Performance Exceeds 250 mA Per JESD 17
*Package Options Include Plastic 300-mil
Shrink Small-Outline (DL), Thin Shrink
Small-Outline (DGG), and Thin Very
Small-Outline (DGV) Packages


Pinout

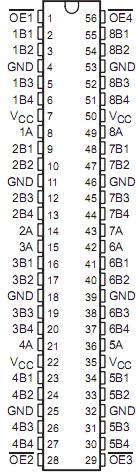

Connection Diagram


Specifications

Supply voltage range,   VCC. . . . . . . . . .. . . . . .. . . . . . . . . . . . . -0.5 V to 4.6V
Input voltage range, VI(see Note 1). . . . . . . . . .. . . ...  . -0.5 V to VCC + 4.6 V
Onput voltage range, VO(see Note 1 and 2). . . . . . . ... . -0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0  )  .. . . . . . . . . .. . . . . .. . . . . .. . . . . . . .-50mA
Onput clamp current, IOK (VO < 0 ). . .  .. . . . . .. . . . . .. . . . . .. . . . .  . . . -50mA
Continuous output current,IO .. . . . . .. . . . . .. . . . . .. . . . . .. . .  . ... . . ±50mA
Continuous current through VCC or GND .. . . . . . . . . . . . .. . . . . .. . . .±100mA
Package thermal impedance, JA (see Note 3): DGG package  . . . .. . 81°C/W
                                                                          DGV package. . . . . .. 86°C/W
                                                                          DL package  . . . . . ...74°C/W
Storage temperature range, Tstg  . . . . .  . . . . .  . . . . .  . . . 65°C to 150°C


Description

      This SN74ALVCH16344 1-bit to 4-bit address driver is designed for 1.65-V to 3.6-V VCC operation.

      The SN74ALVCH16344 is used in applications in which four separate memory locations must be addressed by a single address.

      To ensure the high-impedance state of SN74ALVCH16344 during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

      Active bus-hold circuitry is provided to hold unused or floating inputs at a valid logic level. The SN74ALVCH16344 is characterized for operation from 40°C to 85°C.
