SN74ALVCH16524

Features: *Member of the Texas Instruments Widebus™ Family*EPIC™ (Enhanced-Performance Implanted CMOS) Submicron Process*ESD Protection Exceeds 2000 V PerMIL-STD-883, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)*Latch-Up Performance Exceeds 250 mA Per JESD 17*Bus ...

product image

SN74ALVCH16524 Picture
See larger image
SeekIC No. : 004498290 Detail

SN74ALVCH16524: Features: *Member of the Texas Instruments Widebus™ Family*EPIC™ (Enhanced-Performance Implanted CMOS) Submicron Process*ESD Protection Exceeds 2000 V PerMIL-STD-883, Method 3015; Exceed...

SN74ALVCH16524 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74ALVCH16524
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*Member of the Texas Instruments Widebus™ Family
*EPIC™  (Enhanced-Performance Implanted CMOS) Submicron Process
*ESD Protection Exceeds 2000 V Per
  MIL-STD-883, Method 3015; Exceeds 200 V
  Using Machine Model (C = 200 pF, R = 0)
*Latch-Up Performance Exceeds 250 mA Per JESD 17
*Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors
*Package Options Include Plastic 300-mil
  Shrink Small-Outline (DL) and Thin Shrink
  Small-Outline (DGG) Packages


Pinout

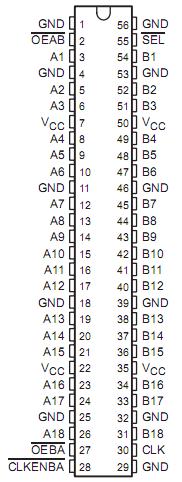

Connection Diagram


Specifications

Supply voltage range,   VCC. . . . . . . . . .. . . . . .. . . . . . . . .  . . . -0.5 V to 4.6V
Input voltage range, VI(see Note 1). . . . . . . . . .. . . ... . -0.5 V to VCC + 4.6 V
                                 I/O ports (see Notes 1 and 2) . .  0.5 V to VCC + 0.5 V
Onput voltage range, VO(see Note 1 and 2). . . . . . . .... -0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0  )  .. . . . . . . . . .. . . . . .. . . . . .. . . . . . . .-50mA
Input clamp current, IOK (VO < 0 ). . .  .. . . . . .. . . . . .. . . . . .. . . . .  . . . -50mA
Continuous output current,IO .. . . . . .. . . . . .. . . . . .. . . . . .. . .  . ... . . ±50mA
Continuous current through VCC or GND .. . . . . . . . . . . . .. . . . . .. . . .±100mA
Package thermal impedance, JA (see Note 3): DGG package  . . . .. . 81°C/W
                                                                          DGV package. . . . . . . 74°C/W
Storage temperature range, Tstg  . . . . .  . . . . .  . . . . .  . . . 65°C to 150°C


Description

      This SN74ALVCH16524 18-bit universal bus transceiver is designed for 1.65-V to 3.6-V VCC operation.

      Data flow in each direction is controlled by output-enable (OEBA and OEBA) and clock-enable (CLKENBA) inputs. For the A-to-B data flow, the data flows through a single buffer. The B-to-A data can flow through a four-stage pipeline register path, or through a single register path, depending on the state of the select (SEL) input. Data is stored in the internal registers on the low-to-high transition of the clock (CLK) input, provided that the appropriate CLKENBA input is low. The B-to-A data transfer is synchronized with CLK. To ensure the high-impedance state of SN74ALVCH16524 during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

      Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level.The SN74ALVCH16524 is characterized for operation from 40°C to 85°C.
