Features:

`State-of-the-Art Advanced BiCMOS Technology (ABT) Widebus™ Design for 2.5-V and 3.3-V Operation and Low Static-Power Dissipation
`Support Mixed-Mode Signal Operation (5-V Input and Output Voltages With 2.3-V to 3.6-V V_CC)
`Typical VOLP (Output Ground Bounce) <0.8 V at V_CC= 3.3 V, T_A= 25°C
`High Drive
A Port = 12/12 mA at 3.3-V V_CC B port = 32/64 mA at 3.3-V V_CC
`Ioff and Power-Up 3-State Support Hot Insertion
`Use Bus Hold on Data Inputs in Place of External Pullup/Pulldown Resistors to Prevent the Bus From Floating
`A-Port Outputs Have Equivalent 30- Series Resistors, So No External Resistors Are Required
`Flow-Through Architecture Facilitates Printed Circuit Board Layout
`Distributed V_CC and GND Pins Minimize High-Speed Switching Noise
`Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

Pinout

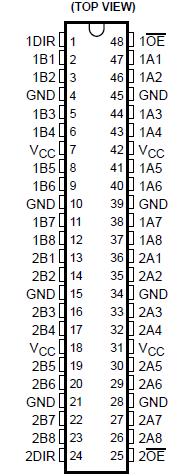

Connection Diagram

Specifications

Supply voltage range, V_CC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 4.6 V
Input voltage range, V_I (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Voltage range applied to any output in the high-impedance
or power-off state, V_O (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Voltage range applied to any output in the high state, V_O(see Note 1) . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Output current in the low state, I_O: SN54ALVTH162245 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96 mA
                                                       SN74ALVTH162245 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128 mA
Output current in the high state, I_O: SN54ALVTH162245 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 mA
                                                      SN74ALVTH162245 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 mA
Continuous current through VCC or GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . ±100 mA
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 mA
Output clamp current, IOK (VO < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . 50 mA
Package thermal impedance, JA (see Note 2): DGG package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70°C/W
                                                                        DGV package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58°C/W
                                                                        DL package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63°C/W
                                                                       GQL package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. The input and output negative-voltage ratings may be exceeded if the input and output clamp-current ratings are observed.
2. The package thermal impedance is calculated in accordance with JESD 51-7.

Description

The SN74ALVTH162245 devices are 16-bit (dual-octal) noninverting 3-state transceivers designed for 2.5-V or 3.3-V VCC operation, but with the capability to provide a TTL interface to a 5-V system environment.

These SN74ALVTH162245 devices can be used as two 8-bit transceivers or one 16-bit transceiver. They allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction control (DIR) input. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated.

The A-port outputs, which are designed to source or sink up to 12 mA, include equivalent 30- series resistors to reduce overshoot and undershoot. These SN74ALVTH162245 devices are fully specified for hot-insertion applications using Ioff and power-up 3-state. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The power-up 3-state circuitry places the outputs in the high-impedance state during power up and power down, which prevents driver conflict.

Active bus-hold circuitry of SN74ALVTH162245 is provided to hold unused or floating data inputs at a valid logic level. Use of pullup or pulldown resistors with the bus-hold circuitry is not recommended.
