Product Details

Description



Pinout

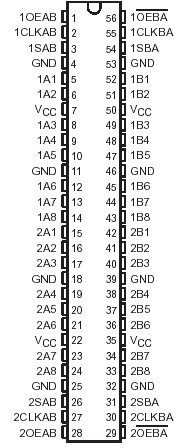

  Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 4.6 V
Input voltage range, VI (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   . . . . .. .0.5 V to 7 V
Voltage range applied to any output in the high or power-off state, VO (see Note 1)  . . . . . . .  .0.5 V to 7 V
Output current in the low state, IO: SN54ALVTH16652  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . .96 mA
                                                         SN74ALVTH16652. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128 mA
Output current in the high state, IO: SN54ALVTH16652  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48 mA
                                                          SN74ALVTH16652  . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .  .. .64 mA
Input clamp current, IIK (VI < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . .50 mA
Output clamp current, IOK (VO < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . .  . .50 mA
Package thermal impedance, JA (see Note 2): DGG package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81°C/W
                                                                          DGV package  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86°C/W
                                                                          DL package . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . 74°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . .65°C to 150°C



Description

The SN74ALVTH16652  devices are 16-bit bus transceivers designed for 2.5-V or 3.3-V VCC operation, but with the capability to provide a TTL interface to a 5-V system environment. These devices can be used as two 8-bit transceivers or one 16-bit transceiver.

Complementary output-enable (OEAB and OEBA) inputs are provided to control the transceiver functions. Select-control (SAB and SBA) inputs are provided to select whether real-time or stored data is transferred. A low input level selects real-time data, and a high input level selects stored data. The SN74ALVTH16652 circuitry used for select control eliminates the typical decoding glitch that occurs in a multiplexer during the transition between stored and real-time data. Figure 1 illustrates the four fundamental bus-management functions that can be performed with the SN74ALVTH16652.

Data on the A or B bus, or both, can be stored in the internal D flip-flops by low-to-high transitions at the appropriate clock (CLKAB or CLKBA) inputs, regardless of the levels on the select-control or output-enable inputs. When SAB and SBA are in the real-time transfer mode, SN74ALVTH16652 also is possible to store data without using the internal D-type flip-flops by simultaneously enabling OEAB and OEBA. In this configuration, each output reinforces its input. When all other data sources to the two sets of bus lines are at high impedance, each set of bus lines remains at its last-level configuration.

Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level.When VCC is between 0 and 1.2 V, the device is in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.2 V, OE should be tied to VCC through a pullup resistor and OE should be tied to GND through a pulldown resistor; the minimum value of the resistor is determined by the current-sinking/current-sourcing capability of the driver.The SN54ALVTH16652 is characterized for operation over the full military temperature range of 55°C to 125°C. The SN74ALVTH16652 is characterized for operation from 40°C to 85°C.
