Pinout

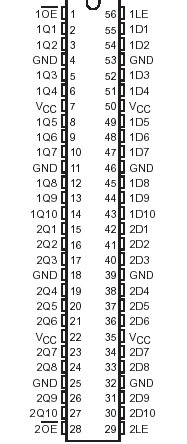

  Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 4.6 V
Input voltage range, VI (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   . . . . .. .0.5 V to 7 V
Voltage range applied to any output in the high or power-off state, VO (see Note 1)  . . . . . . .  .0.5 V to 7 V
Output current in the low state, IO: SN54ALVTH16841  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . .96 mA
                                                         SN74ALVTH16841. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128 mA
Output current in the high state, IO: SN54ALVTH16841  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48 mA
                                                          SN74ALVTH16841  . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .  .. .64 mA
Input clamp current, IIK (VI < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . .50 mA
Output clamp current, IOK (VO < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . .  . .50 mA
Package thermal impedance, JA (see Note 2): DGG package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81°C/W
                                                                          DGV package  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86°C/W
                                                                          DL package . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . 74°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . .65°C to 150°C



Description

The SN74ALVTH16841 are 20-bit bus-interface D-type latches with 3-state outputs designed for 2.5-V or 3.3-V VCC operation, but with the capability to provide a TTL interface to a 5-V system environment.

The SN74ALVTH16841 features 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. This device is particularly suitable for implementing buffer registers, unidirectional bus drivers, and working registers.

The SN74ALVTH16841 can be used as two 10-bit latches or one 20-bit latch. The 20 latches are transparent D-type latches. The device has noninverting data (D) inputs and provides true data at its outputs. While the latch-enable (1LE or 2LE) input is high, the Q outputs of the corresponding 10-bit latch follow the D inputs. When LE is taken low, the Q outputs are latched at the levels set up at the D inputs.

A buffered output-enable (1OE or 2OE) input can be used to place the outputs of the corresponding 10-bit latch in either a normal logic state (high or low logic levels) or a high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly.The output-enable (OE) input does not affect the internal operation of the latches. Old data can be retained or new data can be entered while the outputs are in the high-impedance state.Active bus-hold circuitry is provided to hold unused or floating inputs at a valid logic level.When VCC is between 0 and 1.2 V, the device is in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.2 V, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.The SN54ALVTH16841 is characterized for operation over the full military temperature range of 55°C to 125°C. The SN74ALVTH16841 is characterized for operation from 40°C to 85°C.
