SN74AS257

PinoutSpecificationsSupply voltage, VCC. . . . . . . . . . . . . . . . . . . . . .. .. . . . . . . . . . . . . . .. . . . .... .......... . . 7 VInput voltage, VI. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..................7 VVoltage applied to a ...

product image

SN74AS257 Picture
See larger image
SeekIC No. : 004498397 Detail

SN74AS257: PinoutSpecificationsSupply voltage, VCC. . . . . . . . . . . . . . . . . . . . . .. .. . . . . . . . . . . . . . .. . . . .... .......... . . 7 VInput voltage, VI. . . . . . . . . . . . . . . . . . ...

SN74AS257 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74AS257
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

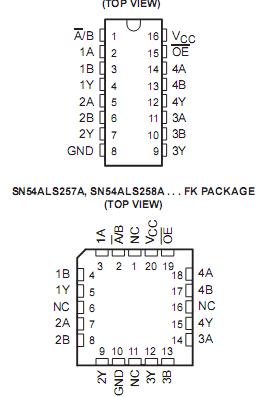

Connection Diagram


Specifications

Supply voltage, VCC . . . . . . . . . . . . . . . . . . . . . .  . .. . . . . . . . . . . . . . .. . . . .... .......... . . 7 V
Input voltage, VI. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..................7 V
Voltage applied to a disabled 3-state output . . . . . . . . . . . . . . . . . . . . . . . . . .............. 5.5 V
Maximum power dissipation at TA = 55°C (in still air) (see Note 1):D package............. 1.3 W
                                                                                                          N package.... .........1.1 W
Operating free-air temperature range, TA:SN54ALS257A, SN54ALS258A ....55°C to 125°C
                                                                  SN74ALS257A, SN74ALS258A............ 0°C to 70°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . ...................65°C to 150°C



Description

These SN74AS257 data selectors/multiplexers are designed to multiplex signals from 4-bit data sources to 4-output data lines in bus-organized systems. The 3-state outputs do not load the data lines when the output-enable (OE</a>) input is at a high logic level.

The SN54ALS257A and SN54ALS258A are characterized for operation over the full military temperature range of 55°C to 125°C. The SN74ALS257A, SN74ALS258A, SN74AS257, and SN74AS258are characterized for operation from 0°C to 70°C.
