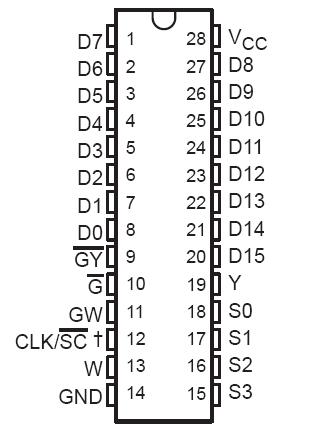

SN74AS851B

These four-line to one-line data selectors/multiplexers provide full binary decoding to select one-of-sixteen data sources with complementary Y and W outputs. The 'AS850A has a clock-controlled select register allowing for a symmetrical presentation of the select inputs to the decoder while the 'AS851B has an enable-controlled select register allowing the user to select and hold one particular data line.

A SN74AS851B buffered group of output controls (G, GY, GW) can be used to place the two outputs in either a normal logic (high or low logic level) or a high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly. The SN74AS851B high-impedance third state and increased drive provide the capability to drive the bus lines in a bus-organized system without the need for interface or pullup components.

The SN74AS851B output controls do not affect the internal operations of the data selector/multiplexer. New data can be setup while the outputs are in the high-impedance state.

The SN74AS850A and SN74AS851B are characterized for operation from 0°C to 70°C.
