SN74AUC16374

Features: ` Member of the Texas Instruments Widebus™ Family` Optimized for 1.8-V Operation and Is 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation` Ioff Supports Partial-Power-Down Mode Operation` Sub-1-V Operable` Max tpd of 2 ns at 1.8 V` Low Power Consumption, 20-mA Max ICC` ±8-m...

product image

SN74AUC16374 Picture
See larger image
SeekIC No. : 004498469 Detail

SN74AUC16374: Features: ` Member of the Texas Instruments Widebus™ Family` Optimized for 1.8-V Operation and Is 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation` Ioff Supports Partial-Power-Down Mo...

SN74AUC16374 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74AUC16374
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Member of the Texas Instruments Widebus™ Family
` Optimized for 1.8-V Operation and Is 3.6-V I/O
  Tolerant to Support Mixed-Mode Signal Operation
` Ioff Supports Partial-Power-Down Mode Operation
` Sub-1-V Operable
` Max tpd of 2 ns at 1.8 V
` Low Power Consumption, 20-mA Max ICC
` ±8-mA Output Drive at 1.8 V
` Latch-Up Performance Exceeds 100 mA Per
  JESD 78, Class II
` ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)


Pinout

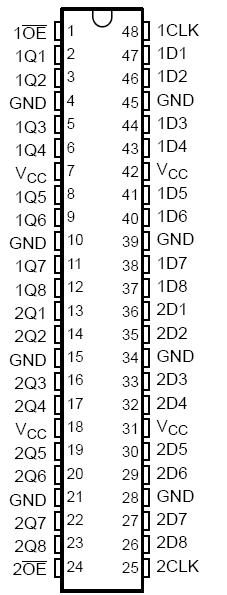

Connection Diagram


Specifications

Symbol Parameter MIN MAX Units
VCC Supply voltage range -0.5 3.6 V
VI Input voltage range(2) -0.5 3.6 V
VO Voltage range applied to any output in the high-impedance or power-off state(2) -0.5 3.6 V
VO Output voltage range(2) -0.5 VCC + 0.5 V
IIK Input clamp current VI < 0   -50 mA
IOK Output clamp current VO < 0   -50 mA
IO Continuous output current   ±20 mA
ICC Continuous current through VCC or GND   ±100 mA
IANG Package thermal impedance(3) DCT package   220 °C/W
DCU package   227
YEP/YZP package   102
TSTG Storage temperature range -65 150 °C
(1) Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings
only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating
conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) The input negative-voltage and output voltage ratings may be exceeded if the input and output current ratings are observed.
(3) The package thermal impedance is calculated in accordance with JESD 51-7.


Description

This SN74AUC16374 16-bit edge-triggered D-type flip-flop is operational at 0.8-V to 2.7-V VCC, but is designed specifically for 1.65-V to 1.95-V VCC operation.

The SN74AUC16374 is particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers. SN74AUC16374 can be used as two 8-bit flip-flops or one 16-bit flip-flop. On the positive transition of the clock (CLK) input, the Q outputs of the flip-flop take on the logic levels set up at the data (D) inputs.

low logic levels) or the high-impedance state. In the SN74AUC16374 high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state and increased drive provide the capability to drive bus lines without interface or pullup components.

SN74AUC16374 OE does not affect internal operations of the latch. Old data can be retained or new data can be entered while the outputs are in the high-impedance state.
