SN74AVC16646

Features: · Member of the Texas Instruments Widebus™Family · EPIC™ (Enhanced-Performance Implanted CMOS) Submicron Process· DOC™ (Dynamic Output Control) Circuit Dynamically Changes Output Impedance,Resulting in Noise Reduction Without Speed Degradation · Dynamic Drive Capability...

product image

SN74AVC16646 Picture
See larger image
SeekIC No. : 004498537 Detail

SN74AVC16646: Features: · Member of the Texas Instruments Widebus™Family · EPIC™ (Enhanced-Performance Implanted CMOS) Submicron Process· DOC™ (Dynamic Output Control) Circuit Dynamically Change...

SN74AVC16646 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74AVC16646
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Member of the Texas Instruments Widebus™Family
· EPIC™ (Enhanced-Performance Implanted CMOS) Submicron Process
· DOC™ (Dynamic Output Control) Circuit Dynamically Changes Output Impedance,Resulting in Noise Reduction Without Speed Degradation
· Dynamic Drive Capability Is Equivalent to Standard Outputs With IOH and IOL of ±24 mA at 2.5-V VCC
· Overvoltage-Tolerant Inputs/Outputs Allow Mixed-Voltage-Mode Data Communications
· Ioff Supports Partial-Power-Down Mode Operation
· Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
· Package Options Include Plastic Thin Shrink Small-Outline (DGG) and Thin Very Small-Outline (DGV) Packages


Application

Audio                                www.ti.com/audio
Automotive                       www.ti.com/automotive
Broadband                        www.ti.com/broadband
Digital Control                   www.ti.com/digitalcontrol
Military                              www.ti.com/military
Optical Networking           www.ti.com/opticalnetwork
Security                            www.ti.com/security
Telephony                        www.ti.com/telephony
Video & Imaging               www.ti.com/video
Wireless                           www.ti.com/wireless


Pinout

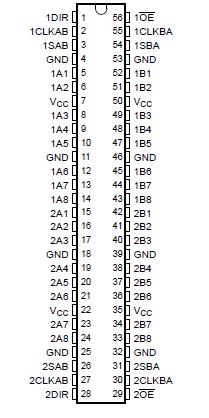

Connection Diagram


Specifications

  MIN MAX UNIT
VCC  Supply voltage range 0.5 4.6 V
VI Input voltage range(2) 0.5 4.6 V
VO Voltage range applied to any input/output
when the output is in the high-impedance or power-off state(2)		 0.5 4.6 V V
VO Voltage range applied to any input/output
when the output is in the high or low state(2) (3) 		0.5 VCC + 0.5 V
IIK Input clamp current VI < 0 50 mA
IOK Output clamp current VO < 0 50 mA
IO Continuous output current ±50 mA
Continuous current through VCC or GND ±100 mA
qJA Package thermal impedance(4) DGG package 64 °C/W
DGV package 48
Tstg Storage temperature range 65 150 °C

(1) Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) The input and output negative-voltage ratings may be exceeded if the input and output current ratings are observed.
(3) The output positive-voltage rating may be exceeded up to 4.6 V maximum if the output current rating is observed.
(4) The package thermal impedance is calculated in accordance with JESD 51.


Description

A SN74AVC16646 Dynamic Output Control (DOC™) circuit is implemented, which, during the transition, initially lowers the output impedance to effectively drive the load and, subsequently, raises the impedance to reduce noise. Figure 1 shows typical VOL vs IOL and VOH vs IOH curves to illustrate the output impedance and drive capability of the circuit. At the beginning of the signal transition, the DOC circuit provides a maximum dynamic drive that is equivalent to a high-drive standard-output device. For more SN74AVC16646 information, refer to the TI application reports, AVC Logic Family Technology and Applications, literature number SCEA006, and Dynamic Output Control (DOC™) Circuitry Technology and Applications, literature number SCEA009.

This SN74AVC16646 16-bit bus transceiver and register is operational at 1.2-V to 3.6-V VCC, but is designed specifically for 1.65-V to 3.6-V VCC operation.
