Product Details

Description



Features:

*Member of the Texas Instruments Widebus™ Family
*EPIC™(Enhanced-Performance ImplantedCMOS) Submicron Process
*DOC™(Dynamic Output Control) Circuit Dynamically Changes Output Impedance
     Resulting in Noise Reduction Without Speed Degradation
*Dynamic Drive Capability Is Equivalent to Standard Outputs With IOH   and IOL  of  24 mA at 2.5-V VCC
*Ioff Supports Partial-Power-Down Mode Operation
*Ideal for Use in PC133 Registered DIMM Applications
*ESD Protection Exceeds JESD 22
     2000-V Human-Body Model (A114-A)
     200-V Machine Model (A115-A)
*Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
*Package Options Include Plastic Thin Shrink Small-Outline (DGG) and Thin Very Small-Outline (DGV) Packages


Pinout

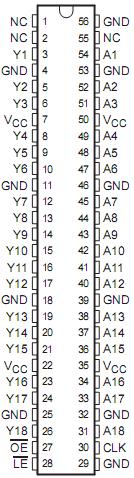

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . -0.5V to 4.6V
Input voltage range, VI  (see Note 1) .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to 4.6V
Voltage range applied to any output in the high-impedance or power-off state, VO . .   -0.5V to 4.6V
Voltage range applied to any output in the high or low state, VO. . . . . . . . . . . . . .-0.5V to VCC+0.5V
Input clamp current, IIK (VI  < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-50 mA
Output clamp current, IOK  (VO  < 0) . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-50 mA
Continuous output current, IO. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±50 mA
Continuous current through each VCC  or GND  . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . .. . . ..±100 mA
Package thermal impedance JA  (see Note 3):DGG package  .. . . . . . . . . . . . . . . . . . . . .  . . . 64/W
                                                                         DGV package . . . . . . . . . . . . . . . . . . . . . . . .. . 48/W
Storage temperature range, Tstg. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -65 to 150


Description

      A SN74AVC16834 Dynamic Output Control (DOC) circuit is implemented, which, during the transition, initially lowers the output impedance to effectively drive the load and, subsequently, raises the impedance to reduce noise. Figure 1 shows typical VOL vs IOL  and VOH  vs IOH  curves to illustrate the output impedance and drive capability of the circuit. At the beginning of the signal transition, the DOC circuit provides a maximum dynamic drive that is equivalent to a high-drive standard-output device. For more SN74AVC16834 information, refer to the TI application reports, AVC Logic Family Technology and Applications, literature number SCEA006, and Dynamic Output Control (DOC™)  Circuitry Technology and Applications, literature number SCEA009.
