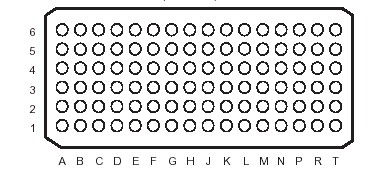

SN74AVC32245

Supply voltage range, V_CC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . .0.5 V to 4.6 V
Input voltage range, VI: Except I/O ports (see Note 1) . . . . . . . . . . . . . . . . . . . . . .  . . ..0.5 V to 4.6 V
                                       I/O ports (see Notes 1 and 2)  . . . . . . . . . . . . . . . . . . . . .0.5 V to V_CC + 0.5 V
Voltage range applied to any output in the high-impedance or power-off state, V_O
   (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 4.6 V
Voltage range applied to any output in the high or low state, V_O
   (see Notes 1 and 2)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to V_CC + 0.5 V
Input clamp current, I_IK (V_I < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . .50 mA
Output clamp current, I_OK (V_O < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . .50 mA
Continuous output current, I_O  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . .. . . . . . . .±50 mA
Continuous current through each V_CC or GND  . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . .  . . . . .±100 mA
Package thermal impedance, _JA (see Note 3): . . . . . . . .. . . .  . . . . . . . . . . . . . . . . . .  . . . . . .. . . 40°C/W
Storage temperature range, T_stg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .65°C to 150°C

A Dynamic Output Control (DOC) circuit is implemented, which, during the transition, initially lowers the output impedance to effectively drive the load and, subsequently, raises the impedance to reduce noise. Figure 1 shows typical V_OL vs I_OL and V_OH vs I_OH curves to illustrate the output impedance and drive capability of the circuit. At the beginning of the signal transition, the DOC circuit provides a maximum dynamic drive that is equivalent to a high-drive standard-output device. For more information, refer to the TI application reports, AVC Logic Family Technology and Applications, literature number SCEA006, and Dynamic Output Control (DOCE) Circuitry Technology and Applications, literature number SCEA009. This SN74AVC32245 32-bit (dual-octal) noninverting bus transceiver is operational at 1.2-V to 3.6-V V_CC, but is designed specifically for 1.65-V to 3.6-V V_CC operation.

The SN74AVC32245 is designed for asynchronous communication between data buses. The control-function implementation minimizes external timing requirements.

This  SN74AVC32245 device can be used as four 8-bit transceivers, two 16-bit transceivers, or one 32-bit transceiver. It allows data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated.

To ensure the high-impedance state of SN74AVC32245 during power up or power down, OE should be tied to V_CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

This SN74AVC32245 device is fully specified for partial-power-down applications using I_off. The I_off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

The SN74AVC32245 is characterized for operation from 40°C to 85°C.
