Features:

· Control Inputs VIH/VIL Levels are Referenced to VCCA Voltage
· VCC Isolation Feature − If Either VCC Input Is at GND, Both Ports Are in the High-Impedance State
· Overvoltage-Tolerant Inputs/Outputs Allow Mixed-Voltage-Mode Data Communications
· Fully Configurable Dual-Rail Design Allows Each Port to Operate Over the Full 1.2-V to 3.6-V Power-Supply Range
· Ioff Supports Partial-Power-Down Mode Operation
· I/Os Are 4.6-V Tolerant
· Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors
· Max Data Rates
    − 380 Mbps (1.8-V to 3.3-V Translation)
    − 260 Mbps (<1.8-V to 3.3-V Translation)
    − 260 Mbps (Translate to 2.5 V)
    − 210 Mbps (Translate to 1.8 V)
    − 120 Mbps (Translate to 1.5 V)
    − 100 Mbps (Translate to 1.2 V)
· Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
· ESD Protection Exceeds JESD 22
    − 2000-V Human-Body Model (A114-A)
    − 200-V Machine Model (A115-A)
    − 1000-V Charged-Device Model (C101)



Pinout

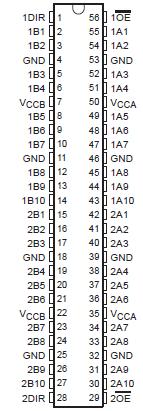

  Connection Diagram


Specifications

Supply voltage range, VCCA and VCCB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . −0.5 V to 4.6 V
Input voltage range, VI (see Note 1): I/O ports (A port) . . . . . . . . . . . . . . . . .. . . −0.5 V to 4.6 V
                                                            I/O ports (B port) . . . . . . . . . . . . . . . .  . . . −0.5 V to 4.6 V
                                                            Control inputs . . . . . . . . . . . . . . . . . . . . . . −0.5 V to 4.6 V
Voltage range applied to any output in the high-impedance or power-off state, VO
    (see Note 1): (A port) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . −0.5 V to 4.6 V
                          (B port) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . −0.5 V to 4.6 V
Voltage range applied to any output in the high or low state, VO
     (see Notes 1 and 2): (A port) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to VCCA + 0.5 V
                                      (B port) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . −0.5 V to VCCB + 0.5 V
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . −50 mA
Output clamp current, IOK (VO < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . −50 mA
Continuous output current, IO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . .  . . . . . . . . ±50 mA
Continuous current through each VCCA, VCCB, and GND . . . . . . . . . . . . . . . . . . .. . . . . . . ±100 mA
Package thermal impedance, JA (see Note 3): DGG package . . . . . . . . . . . . . . . . . . . . . . 64°C/W
                                                                          DGV package . . . . . . . . . . . . . .  . . . . . . . . 48°C/W
                                                                          GQL/ZQL package . . . . . . . . . . . . . . . . . . . 42°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . −65°C to 150°C

† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. The input voltage and output negative-voltage ratings may be exceeded if the input and output current ratings are observed.
2. The output positive-voltage rating may be exceeded up to 4.6 V maximum if the output current rating is observed.
3. The package thermal impedance is calculated in accordance with JESD 51-7.




Description

This 20-bit noninverting bus transceiver SN74AVCH20T245 uses two separate configurable power-supply rails. The SN74AVCH20T245 is optimized to operate with VCCA/VCCB set at 1.4 V to 3.6 V. SN74AVCH20T245 is operational with VCCA/VCCB as low as 1.2 V. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2 V to 3.6 V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.2 V to 3.6 V. This allows for universal low-voltage bidirectional translation between any of the 1.2-V, 1.5-V, 1.8-V, 2.5-V, and 3.3-V voltage nodes.
