Features:

State-of-the-Art BiCMOS Design
    Significantly Reduces ICCZ
ESD Protection Exceeds 2000 V Per
    MIL-STD-883C, Method 3015
3-State Outputs Drive Bus Lines or Buffer
    Memory Address Registers
Package Options Include Plastic
    Small-Outline (D) Packages, Ceramic Chip
    Carriers (FK) and Flatpacks (W), and
    Standard Plastic and Ceramic 300-mil
    DIPs (J, N)


Pinout

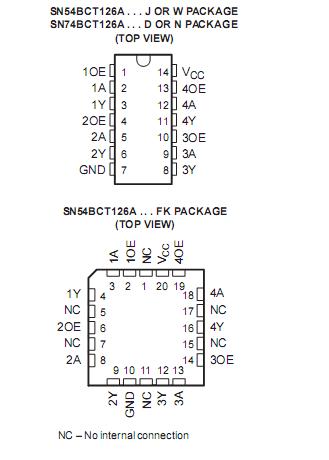

Connection Diagram


Specifications

Supply voltage range, VCC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Input voltage range, VI (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .0.5 V to 7V
Voltage range applied to any output in the disabled or power-off state, VO ..0.5 V to 5.5 V
Voltage range applied to any output in the high state, VO  . . . . . . . . . . . . . . . .0.5 V to VCC
Current into any output in the low state:SN54BCT126A . . . . . . . . . . . . . . . . . . . . . . . . .96 mA
                                                                  SN74BCT126A . . . . . . . . . . . . . . . . . . . . . . .128 mA
Operating free-air temperature range:SN54BCT126A . . . . . . . . . . . . . . . . .55°C to 125°C
                                                            SN74BCT126A . . . . . . . . . . . . . . . . . . . . .0°C to 70°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . ..65°C to 150°C



Description

The BCT126A bus buffer features independentline drivers with 3-state outputs. Each output is disabled when the associated output-enable (OE) nput is low.

The SN54BCT126A is characterized for operation over the full military temperature range of 55°Cto 125°C. The SN74BCT126A is characterized for operation from 0°C to 70°C.
