SN74BCT2410

Features: • State-of-the-Art BiCMOS Design Significantly Reduces ICCZ• ESD Protection Exceeds 2000 V Per MIL-STD-883C, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)• Output Ports Have Equivalent 33- Series Resistors, So No External Resistors Are Required̶...

product image

SN74BCT2410 Picture
See larger image
SeekIC No. : 004498584 Detail

SN74BCT2410: Features: • State-of-the-Art BiCMOS Design Significantly Reduces ICCZ• ESD Protection Exceeds 2000 V Per MIL-STD-883C, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)&...

SN74BCT2410 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74BCT2410
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• State-of-the-Art BiCMOS Design Significantly Reduces ICCZ
• ESD Protection Exceeds 2000 V Per MIL-STD-883C, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)
• Output Ports Have Equivalent 33- Series Resistors, So No External Resistors Are Required
• Packaged in Plastic Small-Outline (DW) Package




Pinout

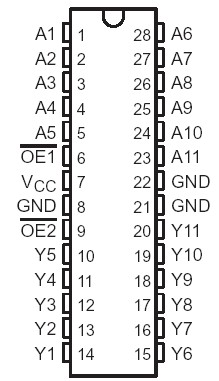

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Input voltage range, VI (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . 0.5 V to 7 V
Voltage range applied to any output in the disabled or power-off state, VO . . . . . . . .  . .0.5 V to 5.5 V
Voltage range applied to any output in the high state, VO . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to VCC
Input clamp current, IIK(VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 mA
Current into any output in the low state ,IO . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . .   60 mA
Operating free-air temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . .  . 0°C to 70°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . .. .65°C to 150°C


Description

The SN74BCT2410 is a noninverting 11-bit buffer/line driver specifically designed to drive MOS DRAMs of up to 4 megabits. It is also suitable for use with wide data paths or buses carrying parity. The outputs, which are designed to source 1 mA and sink 12 mA, include 33- series resistors to reduce overshoot and undershoot.

The output-enable (OE1 and OE2) inputs of the SN74BCT2410 are routed internally to a two-input AND gate with active-low inputs. When both OE1 and OE2 are low, the Y outputs are active (high or low logic level). When either OE1 or OE2 is high, the Y outputs are in the high-impedance state.

The multiple ground pins of the SN74BCT2410 reduce switching noise for more reliable system operation.

The SN74BCT2410 is characterized for operation from 0°C to 70°C.
