SN74BCT25240

Features: • State-of-the-Art BiCMOS Design Significantly Reduces ICCZ• ESD Protection Exceeds 2000 V Per MIL-STD-883C, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)• Designed to Facilitate Incident-Wave Switching for Line Impedances of 25 or Greater• D...

product image

SN74BCT25240 Picture
See larger image
SeekIC No. : 004498590 Detail

SN74BCT25240: Features: • State-of-the-Art BiCMOS Design Significantly Reduces ICCZ• ESD Protection Exceeds 2000 V Per MIL-STD-883C, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)&...

SN74BCT25240 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74BCT25240
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• State-of-the-Art BiCMOS Design Significantly Reduces ICCZ
• ESD Protection Exceeds 2000 V Per MIL-STD-883C, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)
• Designed to Facilitate Incident-Wave Switching for Line Impedances of 25 or Greater
• Distributed VCC and GND Pins Minimize Noise Generated by the Simultaneous Switching of Outputs
• Package Options Include Plastic Small-Outline (DW) Packages and Standard Plastic 300-mil DIPs (NT)


Pinout

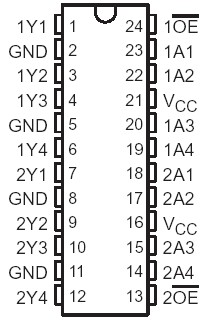

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Input voltage range, VI (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . 0.5 V to 7 V
Voltage range applied to any output in the disabled or power-off state, VO . . . . . . . .  . .0.5 V to 5.5 V
Voltage applied to any output in the high state, VO  . . . . . . . . . . . . . . . . . . . . . . . .  . . . . .0.5 V to VCC
Input clamp current, IIK(VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 mA
Current into any output in the low state, IO  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 376 mA
Operating free-air temperature range  . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . .0°C to 70°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . .. .65°C to 150°C


Description

This 25- octal buffers and line driver of the SN74BCT25240 is designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.

The SN74BCT25240 is capable of sinking 188-mA IOL, which facilitates switching 25-W transmission lines on the incident wave. The distributed VCC and GND pins minimize switching noise for more reliable system operation.

When the output-enable (1OE and 2OE) inputs are low, the device transmits the inverted A-input data to the Y outputs. When 1OE and 2OE are high, the outputs are in the high-impedance state. 1OE affects only the 1Y outputs; 2OE affects only the 2Y outputs.

The SN74BCT25240 is characterized for operation from 0°C to 70°C.
