Features:

• State-of-the-Art BiCMOS Design Significantly Reduces ICCZ
• ESD Protection Exceeds 2000 V Per MIL-STD-883C, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)
• Designed to Facilitate Incident-Wave Switching for Line Impedances of 25 or Greater
• Distributed VCC and GND Pins Minimize Noise Generated by the Simultaneous Switching of Outputs
• The A Port Features Open-Collector Outputs That Provide 188-mA IOL to Allow for Heavy DC Loading on Open-Collector Outputs
• Eliminates Need for 3-State Overlap Protection on A Ports
• Package Options Include Plastic Small-Outline (DW) Packages and Standard Plastic 300-mil DIPs (NT)


Pinout

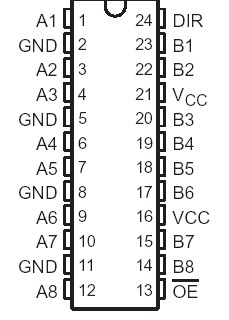

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Input voltage range, VI: Control inputs (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
                                       I/O ports (see Note 1)  . . . . . . . . . . . . . . . . . . . . . .. . . . .0.5 V to 5.5 V
Voltage range applied to any output in the disabled or power-off state, VO.  .   . . 0.5 V to 5.5 V
Voltage range applied to any output in the high state, VO . . . . . . . . . . . . . . . .. . . . .0.5 V to VCC
Input clamp current, IIK (VI < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 mA
Current into any output in the low state, IO: A ports  . . . . . . . . . . . . . . . . . . . .  . . . . . . . . .376 mA
                                                                       B ports  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48 mA
Operating free-air temperature range  . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . .0°C to 70°C
Storage temperature range  . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . .65°C to 150°C


Description

This 25-W octal bus transceiver of the SN74BCT25642 is designed for asynchronous communication between data buses. The device transmits data from the A bus to the B bus or from the B bus to the A bus depending upon the level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so the buses are effectively isolated.

The SN74BCT25642 is capable of sinking 188-mA IOL (A port), which facilitates switching 25- transmission lines on the incident wave. It is designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented transceivers. The distributed VCC and GND pins minimize the noise generated by the simultaneous switching of the outputs.

The SN74BCT25642 is characterized for operation from 0°C to 70°C.
