SN74BCT2828B

Features: • State-of-the-Art BiCMOS Design Significantly Reduces ICCZ• ESD Protection Exceeds 2000 V Per MIL-STD-883C, Method 3015• Output Ports Have Equivalent 33- Series Resistors, So No External Resistors Are Required• 3-State Inverting Outputs Drive Bus Lines or Buffer ...

product image

SN74BCT2828B Picture
See larger image
SeekIC No. : 004498595 Detail

SN74BCT2828B: Features: • State-of-the-Art BiCMOS Design Significantly Reduces ICCZ• ESD Protection Exceeds 2000 V Per MIL-STD-883C, Method 3015• Output Ports Have Equivalent 33- Series Resistor...

SN74BCT2828B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74BCT2828B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• State-of-the-Art BiCMOS Design Significantly Reduces ICCZ
• ESD Protection Exceeds 2000 V Per MIL-STD-883C, Method 3015
• Output Ports Have Equivalent 33- Series Resistors, So No External Resistors Are Required
• 3-State Inverting Outputs Drive Bus Lines or Buffer Memory Address Registers
• Flow-Through Architecture Optimizes PCB Layout
• Package Options Include Plastic Small-Outline (DW) Packages, Ceramic Chip Carriers (FK) and Flatpacks, and Standard Plastic and Ceramic 300-mil DIPs (JT, NT)




Pinout

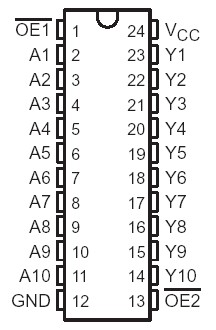

Connection Diagram


Specifications

Supply voltage range, VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . 0.5 V to 7 V
Input voltage range, (I/O ports) (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0.5 V to 7 V
Voltage range applied to any output in the disabled or power-off state, VO  . . . . . . . .  . . 0.5 V to 5.5 V
Voltage range applied to any output in the high state, VO  . . . . . . . . . . . . . . . . . . . .. . . . . . 0.5 V to VCC
Input clamp current, IIK (VI < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 mA
Current into any output in the low state, IO  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . .24 mA
Operating free-air temperature range: SN54BCT2828A  . . . . . . . . . . . . . . . . . . . . . . . .  . .55°C to 125°C
                                                             SN74BCT2828B  . . . . . . . . . . . . . . . . . . . .  . . . . . . . . .0°C to 70°C
Storage temperature range  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   . 65°C to 150°C


Description

These SN74BCT2828B 10-bit bus/MOS memory drivers provide a high-performance bus interface for wide data paths or buses carrying parity.

The SN74BCT2828B 3-state control gate is a 2-input AND gate with active-low inputs so that if either output-enable (OE1 or OE2) input is high, all ten outputs are in the high-impedance state. The outputs are also in the high-impedance state during power-up and power-down conditions. The outputs remain in the high-impedance state while the device is powered down.

The SN74BCT2828B outputs, which are designed to source or sink up to 12 mA, include 33- series resistors to reduce overshoot and undershoot.

The SN54BCT2828A is characterized for operation over the full military temperature range of 55°C to 125°C. The SN74BCT2828B is characterized for operation from 0°C to 70°C.
