SN74BCT2953

Features: • State-of-the-Art BiCMOS Design Significantly Reduces ICCZ• ESD Protection Exceeds 2000 V Per MIL-STD-883C, Method 3015• Two 8-Bit, Back-to-Back Registers Store Data Flowing in Both Directions• A Port Sinks 24 mA and Sources 3 mA• B Port Sinks 64 mA and Sou...

product image

SN74BCT2953 Picture
See larger image
SeekIC No. : 004498597 Detail

SN74BCT2953: Features: • State-of-the-Art BiCMOS Design Significantly Reduces ICCZ• ESD Protection Exceeds 2000 V Per MIL-STD-883C, Method 3015• Two 8-Bit, Back-to-Back Registers Store Data Flo...

SN74BCT2953 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74BCT2953
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• State-of-the-Art BiCMOS Design Significantly Reduces ICCZ
• ESD Protection Exceeds 2000 V Per MIL-STD-883C, Method 3015
• Two 8-Bit, Back-to-Back Registers Store Data Flowing in Both Directions
• A Port Sinks 24 mA and Sources 3 mA
• B Port Sinks 64 mA and Sources 15 mA
• Inverting Outputs
• Package Options Include Plastic Small-Outline (DW) Packages and Standard Plastic 300-mil DIPs (NT)




Pinout

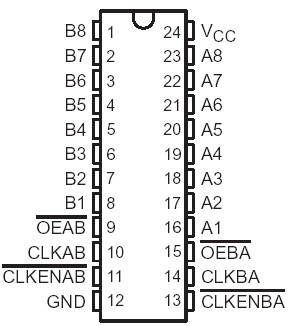

Connection Diagram


Specifications

Supply voltage range, VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Input voltage range (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . .0.5 V to 7 V
Voltage range applied to any output in the disabled or power-off state  . . . . . . . . . . .0.5 V to 5.5 V
Voltage range applied to any output in the high state  . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to VCC
Input clamp current, IIK (VI < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . .. . . . .30 mA
Current into any output in the low state  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . .128 mA
Operating free-air temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . 0°C to 70°C
Storage temperature range  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . .65°C to 150°C


Description

The SN74BCT2953 octal bus transceiver contains two 8-bit back-to-back registers that store data flowing in both directions between two bidirectional buses. Data on the A or B bus is stored in the registers on the low-to-high transition of the clock (CLKAB or CLKBA) input provided that the clock-enable (CLKENAB or CLKENBA) input is low. Taking the output-enable (OEAB or OEBA) input low allows access of the data on the output port (B port or A port).

The SN74BCT2953 is characterized for operation from 0°C to 70°C.
