SN74BCT29861B

Features: • BiCMOS Design Substantially Reduces Standby Current• Functionally Equivalent to SN74ALS29861 and AMD Am29861A• Power-Up High-Impedance State• Package Options Include Plastic Small-Outline (DW) Packages and Standard Plastic 300-mil DIPs (NT)PinoutSpecificationsSu...

product image

SN74BCT29861B Picture
See larger image
SeekIC No. : 004498613 Detail

SN74BCT29861B: Features: • BiCMOS Design Substantially Reduces Standby Current• Functionally Equivalent to SN74ALS29861 and AMD Am29861A• Power-Up High-Impedance State• Package Options Incl...

SN74BCT29861B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74BCT29861B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• BiCMOS Design Substantially Reduces Standby Current
• Functionally Equivalent to SN74ALS29861 and AMD Am29861A
• Power-Up High-Impedance State
• Package Options Include Plastic Small-Outline (DW) Packages and Standard Plastic 300-mil DIPs (NT)


Pinout

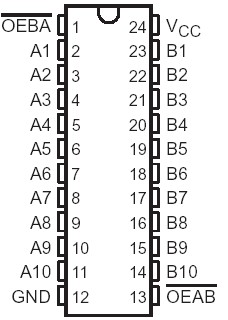

Connection Diagram


Specifications

Supply voltage, VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . 0.5 V to 7 V
Input voltage (I/O ports) (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 5.5 V
Input voltage (excluding I/O ports) (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . .   0.5 V to 7 V
Voltage applied to any output in the high state  . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to VCC
Input clamp current  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 mA
Current into any output in the low state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96 mA
Operating free-air temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0°C to 70°C
Storage temperature range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..  65°C to 150°C


Description

This SN74BCT29861B 10-bit bus transceiver is designed for asynchronous communication between data buses. The control-function implementation allows for maximum flexibility in timing.

The SN74BCT29861B device allows data transmission from the A bus to the B bus or from the B bus to the A bus, depending upon the logic levels at the output-enable (OEBA and OEAB) inputs.

The SN74BCT29861B outputs are in the high-impedance state during power-up and power-down conditions. The outputs remain in the high-impedance state while the device is powered-down.

The SN74BCT29861B is characterized for operation from 0°C to 70°C.
