SN74BCT29862B

Features: • BiCMOS Design Substantially Reduces Standby Current• Functionally Equivalent to 4ALS29862 and AMD Am29862A• Power-Up High-Impedance State• ESD Protection Exceeds 2000 V Per Mil-STD-883C, Method 3015• Package Options Include Plastic Small-Outline (DW) Packa...

product image

SN74BCT29862B Picture
See larger image
SeekIC No. : 004498614 Detail

SN74BCT29862B: Features: • BiCMOS Design Substantially Reduces Standby Current• Functionally Equivalent to 4ALS29862 and AMD Am29862A• Power-Up High-Impedance State• ESD Protection Exceeds ...

SN74BCT29862B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74BCT29862B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• BiCMOS Design Substantially Reduces Standby Current
• Functionally Equivalent to 4ALS29862 and AMD Am29862A
• Power-Up High-Impedance State
• ESD Protection Exceeds 2000 V Per Mil-STD-883C, Method 3015
• Package Options Include Plastic Small-Outline (DW) Packages, Ceramic Chip Carriers (FK) and Flatpacks (W), and Standard Plastic and Ceramic 300-mil DIPs (JT, NT)




Pinout

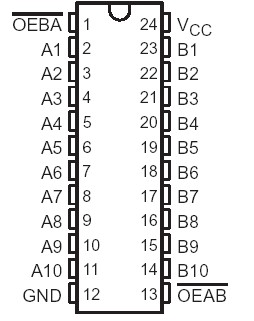

Connection Diagram


Specifications

Supply voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Input voltage (I/O ports) (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 5.5 V
Input voltage (excluding I/O ports) (see Note 1) . . . . . . . . . . . . . . . . . . . . . .  0.5 V to 7 V
Voltage applied to any output in the high state  . . . . . . . . . . . . . . . . . . . . . . .0.5 V to VCC
Input clamp current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 mA
Current into any output in the low state: SN54BCT29862B . . . . . . . . . . . . . . . .  . . . . 48 mA
                                                                 SN74BCT29862B  . . . . . . . . . . . . . . . . . . . . .96 mA
Operating free-air temperature range:     SN54BCT29862B . . . . . . . . . .. . . .55°C to 125°C
                                                                 SN74BCT29862B  . . . . . . . . .. . . . . . . .0°C to 70°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . ..65°C to 150°C


Description

These 10-bit bus transceivers of the SN74BCT29862B are designed for asynchronous communication between data buses. The control-function implementation allows for maximum flexibility in timing.

These devices of the SN74BCT29862B allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending upon the logic levels at the output-enable (OEBA and OEAB) inputs.

The outputs of the SN74BCT29862B are in the high-impedance state during power-up and power-down conditions. The outputs remain in the high-impedance state while the device is powered-down.

The SN74BCT29862B is characterized for operation over the full military temperature range of 55°C to 125°C. The SN74BCT29862B is characterized for operation from 0°C to 70°C.
