SN74BCT29864B

Features: • BiCMOS Design Substantially Reduces Standby Current• Functionally Equivalent to 4ALS29864 and AMD Am29864A• Power-Up High-Impedance State• ESD Protection Exceeds 2000 V Per MIL-STD-883C, Method 3015• Package Options Include Plastic Small-Outline (DW) Packa...

product image

SN74BCT29864B Picture
See larger image
SeekIC No. : 004498616 Detail

SN74BCT29864B: Features: • BiCMOS Design Substantially Reduces Standby Current• Functionally Equivalent to 4ALS29864 and AMD Am29864A• Power-Up High-Impedance State• ESD Protection Exceeds ...

SN74BCT29864B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74BCT29864B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• BiCMOS Design Substantially Reduces Standby Current
• Functionally Equivalent to 4ALS29864 and AMD Am29864A
• Power-Up High-Impedance State
• ESD Protection Exceeds 2000 V Per MIL-STD-883C, Method 3015
• Package Options Include Plastic Small-Outline (DW) Packages and Standard Plastic 300-mil DIPs (NT)


Pinout

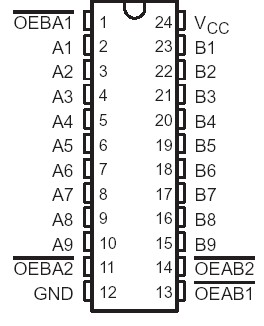

Connection Diagram


Specifications

Supply voltage, VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . 0.5 V to 7 V
Input voltage (I/O ports) (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 5.5 V
Input voltage (excluding I/O ports) (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . .   0.5 V to 7 V
Voltage applied to any output in the high state  . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to VCC
Input clamp current  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 mA
Current into any output in the low state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96 mA
Operating free-air temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0°C to 70°C
Storage temperature range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..  65°C to 150°C


Description

This SN74BCT29864B 9-bit transceiver is designed for asynchronous communication between data buses. The control-function implementation allows for maximum flexibility in timing.

TheSN74BCT29864B  device allows data transmission from the A bus to the B bus or from the B bus to the A bus, depending upon the logic levels at the output-enable (OEBA and OEAB) inputs.

The SN74BCT29864B outputs are in the high-impedance state during power-up and power-down conditions. The outputs remain in the high-impedance state while the device is powered-down.

The SN74BCT29864B is characterized for operation from 0°C to 70°C.
