Features: • State-of-the-Art BiCMOS Design Significantly Reduces ICCZ• Independent Registers for A and B Buses• Multiplexed Real-Time and Stored Data• Inverting Data Paths• Power-Up High-Impedance Mode• Package Options Include Plastic Small-Outline (DW) Packages...
SN74BCT651: Features: • State-of-the-Art BiCMOS Design Significantly Reduces ICCZ• Independent Registers for A and B Buses• Multiplexed Real-Time and Stored Data• Inverting Data Paths...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

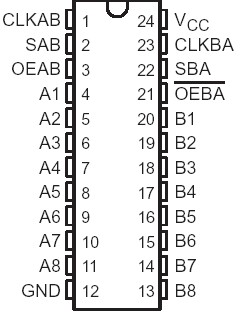

This SN74BCT651 consists of bus transceiver circuits, D-type flip-flops, and control circuitry arranged for multiplexed transmission of data directly from the data bus or from the internal storage registers. Output-enable (OEAB and OEBA) inputs are provided to control the transceiver functions. The select-control (SAB and SBA) inputs are provided to select whether real-time or stored data is transferred. A low input level selects real-time data, and a high input level selects stored data. Figure 1 illustrates the four fundamental bus-management functions that can be performed with the SN74BCT651.
Data of the SN74BCT651 on the A or B bus, or both, can be stored in the internal D flip-flops by low-to-high transitions at the appropriate clock (CLKAB or CLKBA) inputs regardless of the select- or enable-control pins. When SAB and SBA are in the real-time transfer mode, it is also possible to store data without using the internal D-type flip-flops by simultaneously enabling OEAB and OEBA. In this configuration, each output reinforces its input. Thus, when all the other data sources to the two sets of bus lines are at high impedance, each set will remain at its last state.
The SN74BCT651 is characterized for operation from 0°C to 70°C.
