Product Details

Description



Features:

• State-of-the-Art BiCMOS Design Significantly Reduces ICCZ
• ESD Protection Exceeds 2000 V Per MIL-STD-883C, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)
• Option to Select Generate Parity and Check or Feed-Through Data/Parity in A-to-B or B-to-A Directions
• Simultaneously Generates and Checks Parity
• Packaged in Plastic Small-Outline Package


Pinout

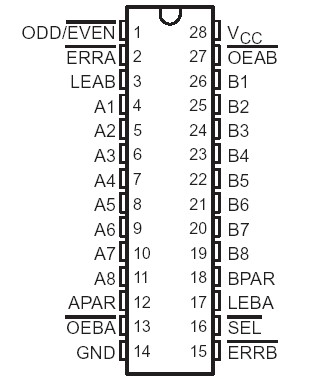

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Input voltage range, VI (except I/O ports) (see Note 1)  . . . . . . . . . . . .. . . . . . . . . . . .0.5 V to 7 V
Voltage range applied to any output in the disabled or power-off state, VO . . . . . . .0.5 V to 5.5 V
Voltage range applied to any output in the high state, VO  . . . . . . . . . . . . . . . . . . . . .0.5 V to VCC
Input clamp current, IIK (VI < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . .30 mA
Current into any output in the low state, IO  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .128 mA
Operating free-air temperature range  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0°C to 70°C
Storage temperature range  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to 150°C


Description

The SN74BCT899 is a 9-bit to 9-bit parity transceiver with transparent latches. The device can operate as a feed-through transceiver or it can generate/check parity from the 8-bit data buses in either direction. It has a current-sinking capability of 24 mA at the A bus and 64 mA at the B bus.

The SN74BCT899 features independent latchenable (LEAB or LEBA) inputs, a select (SEL) input for ODD/EVEN parity, and separate error-signal (ERRA or ERRB) outputs for checking parity.

The SN74BCT899 is characterized for operation from 0°C to 70°C.
