SN74CB3T16211

Features:

 Member of the Texas Instruments Widebus^TM Family
 Output Voltage Translation Tracks V_CC
 Supports Mixed-Mode Signal Operation On All Data I/O Ports
− 5-V Input Down to 3.3-V Output Level Shift, With 3.3-V V_CC
− 5-V/3.3-V Input Down to 2.5-V Output Level Shift, With 2.5-V V_CC
 5-V-Tolerant I/Os, With Device Powered Up or Powered Down
 Bidirectional Data Flow, With Near-Zero Propagation Delay
 Low ON-State Resistance (r_on) Characteristics (r_on = 5 Ω Typical)
 Low Input/Output Capacitance Minimizes Loading (C_io(OFF) = 5 pF Typical)
 Data and Control Inputs Provide Undershoot Clamp Diodes
 Low Power Consumption (I_CC = 70 µA Max)
 V_CC Operating Range From 2.3 V to 3.6 V
 Data I/Os Support 0- to 5-V Signaling Levels (0.8 V, 1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V, 5 V)
 Control Inputs Can be Driven by TTL or 5-V/3.3-V CMOS Outputs
 Ioff Supports Partial-Power-Down Mode Operation
 Latch-Up Performance Exceeds 250 mA Per JESD 17
 ESD Performance Tested Per JESD 22
− 2000-V Human-Body Model (A114-B, Class II)
− 1000-V Charged-Device Model (C101)
 Supports Digital Applications: Level Translation, PCI Interface, Bus Isolation
 Ideal for Low-Power Portable Equipment

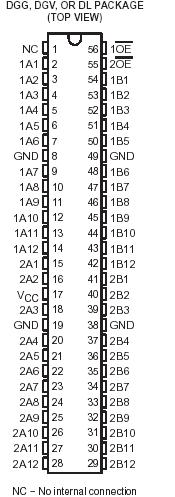

Pinout




Specifications

Supply voltage range, V_CC (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . .−0.5 V to 7 V
Control input voltage range, VIN (see Notes 1 and 2)  . . . . . . . . . .  .−0.5 V to 7 V
Switch I/O voltage range, V_I/O (see Notes 1, 2, and 3). . . . . . . . . . . −0.5 V to 7 V
Control input clamp current, I_IK (V_IN < 0) . . . . . . . . . . . . . . . . . . . . . . . . . .−50 mA
I/O port clamp current, I_I/OK (V_I/O < 0) . . . . . . . . . . . . . . . . . . . . . . . . . .  .−50 mA
ON-state switch current, I_I/O (see Note 4) . . . . . . . . . . . . . . . . . . . . . . . .±128 mA
Continuous current through V_CC or GND terminals  . . . . . . . . . . . . . . . .  .±100 mA
Package thermal impedance, _JA (see Note 5): DGG package  . . . . . . . . . .64°C/W
                                                                          DGV package  . . . . . . . . . .48°C/W
                                                                          DL package  . .                 .56°C/W
                                                                          ZQL package  . . . . . . . .    42°C/W
Storage temperature range, T_stg  . . . . . . . . . . . . . . . . . . . . . . . . .−65°C to 150°C


Description

   The SN74CB3T16211 is a high-speed TTL-compatible FET bus switch with low ON-state resistance (r_on), allowing for minimal propagation delay. The device fully supports mixed-mode signal operation on all data I/O ports by providing voltage translation that tracks V_CC. The SN74CB3T16211 supports systems using 5-V TTL,3.3-V LVTTL, and 2.5-V CMOS switching standards, as well as user-defined switching levels
