Product Details

Description



Pinout

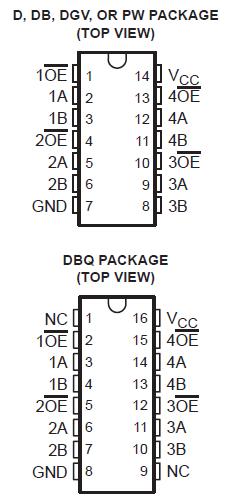

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Input voltage range, VI (see Note 1) . . . . . . . . . . . . . . . . . . . .. 0.5 V to 7 V
Continuous channel current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128 mA
Input clamp current, IK (VI/O < 0) . . . . . . . . . . . . . . . . . . . . . . .. . . . . 50 mA
Package thermal impedance, JA (see Note 2): D package . . . . . . .. .127/W
DB package . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . .  . . . . . . . . . 158/W
DBQ package . . . . . . . . . . . . . . . .. . . . . . . . . . . .  . . . . . . . . . . . . . . . 139/W
DGV package . . . . . . . . . . . . . . .. . . . . . . . . . . .  . . . . . . . . . . . . . . . . 182/W
PW package . . . . . . . . . . . . . . . . .. . . . . . . . . . . .  . . . . . . . . . . . . . . . 170/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . .. .. 65 to 150


Description

The SN74CBT3125 quadruple FET bus switch features independent line switches. Each switch is disabled when the associated output-enable (OE) input is high. The SN74CBT3125 is characterized for operation from 40 to 85.
