SN74CBT3126

Features: Standard '126-Type Pinout (D, DGV, and PW Packages)5 Switch Connection Between Two PortsTTL-Compatible Input LevelsLatch-Up Performance Exceeds 250 mA PerJESD 17Package Options Include PlasticSmall-Outline (D), Shrink Small-Outline(DBQ), Thin Very Small-Outline (DGV), andThin Shrink Smal...

product image

SN74CBT3126 Picture
See larger image
SeekIC No. : 004498701 Detail

SN74CBT3126: Features: Standard '126-Type Pinout (D, DGV, and PW Packages)5 Switch Connection Between Two PortsTTL-Compatible Input LevelsLatch-Up Performance Exceeds 250 mA PerJESD 17Package Options Include Pla...

SN74CBT3126 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74CBT3126
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Standard '126-Type Pinout (D, DGV, and PW
   Packages)
5 Switch Connection Between Two Ports
 TTL-Compatible Input Levels
Latch-Up Performance Exceeds 250 mA Per
   JESD 17
Package Options Include Plastic
Small-Outline (D), Shrink Small-Outline
(DBQ), Thin Very Small-Outline (DGV), and
Thin Shrink Small-Outline (PW) Packages


Pinout

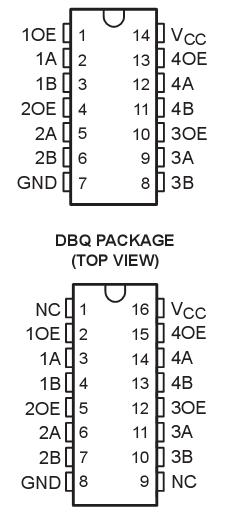

Connection Diagram




Specifications

Supply voltage range, V cc  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . .  0.5 V to 7 V
Input voltage range, Vi (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0.5 V to 7 V
Continuous channel current  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128 mA
Input clamp current, IK(V I/O  < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..... . . . . . . . . . . . . 50 mA

Package thermal impedance, JA (see Note 2): D package  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127°C/W
                                                                             DBQ package  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139°C/W
                                                                             DGV package  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182°C/W
                                                                             PW package  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170°C/W
Storage temperature range, Tstg   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . -65  to 150




Description

The SN74CBT3126 quadruple FET bus switch features independent line switches. Each switch is disabled when the associated output-enable (OE) input is low.
The SN74CBT3126 is characterized for operation from 40°C to 85°C.
