SN74CBT3384

Features: • Functionally Equivalent to QS3384 and QS3L384• 5- Switch Connection Between Two Ports• TTL-Compatible Input and Output Levels• Package Options Include Plastic Small-Outline (DW), Shrink Small-Outline (DB), and Thin Shrink Small-Outline (PW) PackagesPinoutSpecifi...

product image

SN74CBT3384 Picture
See larger image
SeekIC No. : 004498718 Detail

SN74CBT3384: Features: • Functionally Equivalent to QS3384 and QS3L384• 5- Switch Connection Between Two Ports• TTL-Compatible Input and Output Levels• Package Options Include Plastic Sma...

SN74CBT3384 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74CBT3384
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Functionally Equivalent to QS3384 and QS3L384
• 5- Switch Connection Between Two Ports
• TTL-Compatible Input and Output Levels
• Package Options Include Plastic Small-Outline (DW), Shrink Small-Outline (DB), and Thin Shrink Small-Outline (PW) Packages




Pinout

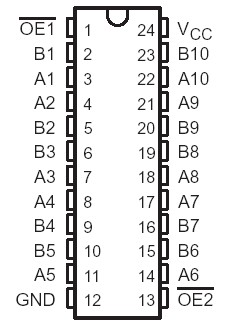

Connection Diagram


Specifications

Supply voltage range, VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . .0.5 V to 7 V
Input voltage range, VI (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . .0.5 V to 6 V
Continuous channel current  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . .128 mA
Input clamp current, IIK (VI/O < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . .50 mA
Maximum power dissipation at TA = 55°C (in still air) (see Note 2): DB package  . .  . . . . . . .0.6 W
                                                                                                         DW package  . . . . . . . . .1.6 W
                                                                                                         PW packag . . . . .  . . . . .0.7 W
Storage temperature range  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . .65°C to 150°C


Description

The SN74CBT3384 provides ten bits of high-speed TTL-compatible bus switching. The low on resistance of the switch allows connections to be made without adding propagation delay.

The SN74CBT3384 is organized as two 5-bit switches with separate output-enable (OE) inputs. When OE is low, the switch is on and port A is connected to port B. When OE is high, the switch is open and a high-impedance state exists between the two ports.

The SN74CBT3384 is characterized for operation from 0°C to 70°C.
