SN74CBT34X245

Features: Member of Texas Instruments' Widebus+TM Family5-Ω Switch Connection Between Two PortsTTL-Compatible Input LevelsFlow-Through Architecture Optimizes PCB LayoutIoff Supports Partial-Power-Down Mode OperationLatch-Up Performance Exceeds 100 mA Per JESD 78, Class IIESD Protection Excee...

product image

SN74CBT34X245 Picture
See larger image
SeekIC No. : 004498721 Detail

SN74CBT34X245: Features: Member of Texas Instruments' Widebus+TM Family5-Ω Switch Connection Between Two PortsTTL-Compatible Input LevelsFlow-Through Architecture Optimizes PCB LayoutIoff Supports Partial-Po...

SN74CBT34X245 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74CBT34X245
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Member of Texas Instruments' Widebus+TM Family
5-Ω Switch Connection Between Two Ports
TTL-Compatible Input Levels
Flow-Through Architecture Optimizes PCB Layout
Ioff Supports Partial-Power-Down Mode Operation
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22
       2000-V Human-Body Model (A114-A)
       200-V Machine Model (A115-A)
       1000-V Charged-Device Model (C101)


Pinout

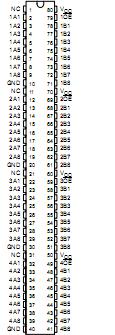

Connection Diagram


Specifications

Supply voltage range, VCC  . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Input voltage range, VI (see Note 1)  . . . . . . . . . . . . . . . 0.5 V to 7 V
Continuous channel current . . . . . . . . . . . . . . . . . . . . . . . . . . .  128 mA
Input clamp current, IIK (VI/O < 0) . . . . . . . . . . . . .  . . . . . . . .  50 mA
Package thermal impedance, JA (see Note 2)  . . . . . . . . . . .   64°C/W
Storage temperature range, Tstg  . . . . . . . . . . . . . .  65°C to 150°C


Description

The SN74CBT34X245 provides 32 bits of high-speed TTL-compatible bus switching. The low on-state resistance of the switch allows connections to be made with minimal propagation delay.

The SN74CBT34X245 is organized as four 8-bit bus switches,two 16-bit bus switches, or one 32-bit bus switch.When output enable ( OE) is low, the switch is on,and port A is connected to port B. When OE is high, the switch is open, and the high-impedance state exists between the two ports.

This SN74CBT34X245 is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
