SN74CBTD3384

Features: 5- Switch Connection Between Two PortsTTL-Compatible Input LevelsDesigned to Be Used in Level-Shifting ApplicationsPackage Options Include Plastic Small-Outline (DW), Shrink Small-Outline (DB, DBQ), Thin Very Small-Outline (DGV), and Thin Shrink Small-Outline (PW) Packages, Ceramic Flat ...

product image

SN74CBTD3384 Picture
See larger image
SeekIC No. : 004498738 Detail

SN74CBTD3384: Features: 5- Switch Connection Between Two PortsTTL-Compatible Input LevelsDesigned to Be Used in Level-Shifting ApplicationsPackage Options Include Plastic Small-Outline (DW), Shrink Small-Outline ...

SN74CBTD3384 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74CBTD3384
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 5- Switch Connection Between Two Ports
 TTL-Compatible Input Levels
 Designed to Be Used in Level-Shifting Applications
 Package Options Include Plastic Small-Outline (DW), Shrink Small-Outline (DB, DBQ), Thin Very Small-Outline (DGV), and Thin Shrink Small-Outline (PW) Packages, Ceramic Flat (W) Package, Ceramic DIPs (JT), and Ceramic Chip Carriers (FK)




Pinout

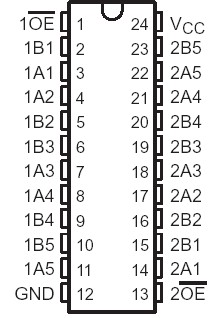

Connection Diagram


Specifications

Supply voltage range, VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Input voltage range, VI (see Note 1)  . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . .0.5 V to 7 V
Continuous channel current  . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . .128 mA
Input clamp current, IIK (VI/O < 0)  . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . .50 mA
Package thermal impedance, JA (see Note 2): DB package  . . . . . . . . .  . . . . . . . . . . . .63°C/W
                                                                          DBQ package  . . . . . .  .. . . . . . . . . . . . . 61°C/W
                                                                          DGV package  . . . . . . . . . . . . . . . . . . . . 86°C/W
                                                                          DW package  . . . . . . . . . . . . . . . . . . . .  .46°C/W
                                                                          PW package  . . . . . . . . . . . . . . . . . . . . . 88°C/W
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . .65°C to 150°C


Description

The 'CBTD3384 devices provide ten bits of high-speed TTL-compatible bus switching. The low on-state resistance of the switches allows connections to be made without adding propagation delay. A diode to VCC is integrated on the die to allow for level shifting between 5-V inputs and 3.3-V outputs.

These SN74CBTD3384 devices are organized as two 5-bit switches with separate output-enable (OE) inputs. When OE is low, the switch is on, and port A is connected to port B. When OE is high, the switch is open, and a high-impedance state exists between the two ports.

The SN54CBTD3384 is characterized for operation over the full military temperature range from 55°C to 125°C. The SN74CBTD3384 is
characterized for operation from 40°C to 85°C.
