Product Details

Description



Pinout

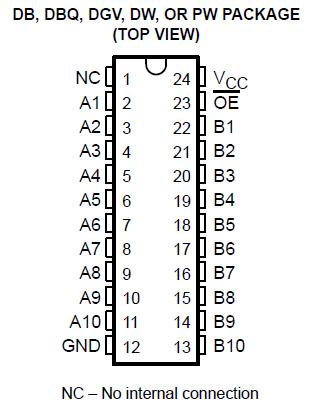

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Input voltage range, VI (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Continuous channel current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... . . . . . . 128 mA
Input clamp current, IIK (VI/O < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . 50 mA
Package thermal impedance, JA (see Note 2): DB package . . . . . . . . . . . . . ......... .  . 63°C/W
DBQ package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .................................................. 61°C/W
DGV package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .................................................. 86°C/W
DW package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .................................................. 46°C/W
PW package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .................................................. 88°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C


Description

The SN74CBTD3861 provides ten bits of high-speed TTL-compatible bus switching. The low on-state resistance of the switch allows connections to be made with minimal propagation
delay. A diode to VCC is integrated on the die to allow for level shifting from 5-V signals at the device inputs to 3.3-V signals at the device outputs.

The SN74CBTD3861 device is organized as one 10-bit switch with a single output-enable (OE) input. When OE is low, the switch is on, and port A is connected to port B. When OE is high, the switch is open, and the high-impedance state exists between the two ports.
