Features: Member of the Texas Instruments WidebusTM Family
5-Ω Switch Connection Between Two Ports
Rail-to-Rail Switching on Data I/O Ports
Ioff Supports Partial-Power-Down Mode Operation
ApplicationAudio
Automotive
Broadband
Digital Control
Military
Optical Networking
Security
Telephony
Video & Imaging

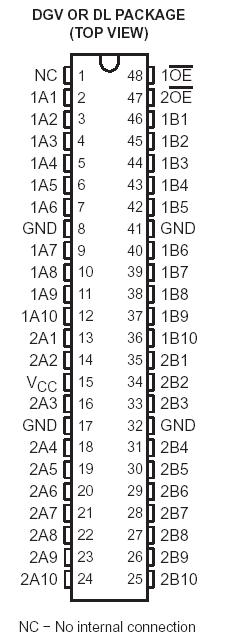

WirelessPinout
SpecificationsSupply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . .−0.5 V to 4.6 V
Input voltage range, VI (see Note 1) . . . . . . . . . . . . . . . . . . . . .−0.5 V to 4.6 V
Continuous channel current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128 mA
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .−50 mA
Package thermal impedance, JA (see Note 2): DGV package . . . 58°C/W
DL package . . . . . . . . .63°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . ..−65°C to 150°CDescription The SN74CBTLV16210 provides 20 bits of high-speed bus switching. The low on-state resistance of the switch allows connections to be made with minimal propagation delay.
The SN74CBTLV16210 device is organized as dual 10-bit bus switches with separate output-enable (OE ) inputs. It can be used as two 10-bit bus switches or as one 20-bit bus switch. When OE is low, the associated 10-bit bus switch is on, and port A is connected to port B. When OE is high, the switch is open, and the high-impedance state exists
between the two ports.
This SN74CBTLV16210 device is fully specified for partial-power-down applications using I
off. The Ioff feature ensures that damaging current will not backflow through the device when it is powered down. The device has isolation during power off.
To ensure the SN74CBTLV16210 high-impedance state during power up or power down, OE should be tied to V
CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
SN74CBTLV16210 Data Sheet
