SN74CBTLVR16292

Features:

 Isolation Under Power-Off Conditions
 Make-Before-Break Feature
Internal 500-  Pulldown Resistors to Ground
Input/Output Ports Have Equivalent 25- Series Resistors, So No External Resistors Are Required
ESD Protection Exceeds 2000 V Per MIL-STD-883
Latch-Up Performance Exceeds 250 mA Per JESD 17
Package Options Include Plastic Thin Shrink Small-Outline (DGG), Thin Very Small-Outline (DGV), and 300-mil Shrink Small-Outline (DL) Packages

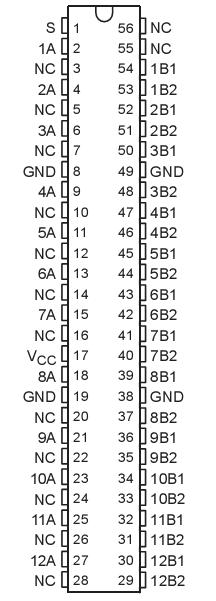

Pinout




Specifications

Supply voltage range, V_CC   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 4.6 V
Input voltage range, V_I (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . 0.5 V to 4.6 V
Continuous channel current  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  128 mA
Input clamp current, I_IK  (V _I< 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  50 mA
Package thermal impedance, _JA (see Note 2): DGG package  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64/W
                                                                           DGV package  . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . 48/W
                                                                           DL package  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56/W
Storage temperature range, T_stg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  -65 to 150
Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

NOTES: 1. The input and output negative-voltage ratings may be exceeded if the input and output clamp-current ratings are observed.

            2. The package thermal impedance is calculated in accordance with JESD 51.


Description

The SN74CBTLVR16292 is a 12-bit 1-of-2 high-speed FET multiplexer/demultiplexer. The low on-state resistance of the switch allows connections to be made with minimal propagation delay.

When the select (S) input of the SN74CBTLVR16292 is low, port A is connected to port B1 and R_INT  is connected to port B2. When S is high, port A is connected to port B2 and R_INT  is connected to port B1.

The input/output ports include equivalent 25- series resistors to reduce overshoot and undershoot.

The SN74CBTLVR16292 is characterized for operation from 40°C to 85°C.
