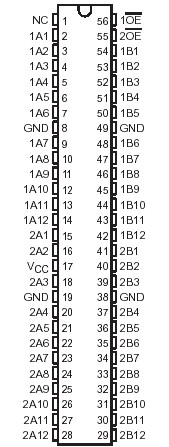

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . .0.5 V to 7 V
Input voltage range, VI (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Continuous channel current  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . .128 mA
Input clamp current, IIK (VI/O < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 mA
Package thermal impedance, JA (see Note 2): DGG package  . . . . . . . . .. . . . . . . . . . . . 64°C/W
                                                                          DGV package  . . . . . . . .  . . . . . . . . . . . . 48°C/W
                                                                          DL package  . . . . . . . . .  . . . . . . . . . . . . .56°C/W
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . .65°C to 150°C


Description

The SN74CBTR16211 provides 24 bits of high-speed TTL-compatible bus switching. The low on-state resistance of the switch allows connections to be made with minimal propagation delay.

The SN74CBTR16211 operates as a dual 12-bit bus switch or as a single 24-bit bus switch. When 1OE is low, 1A is connected to 1B. When 2OE is low, 2A is connected to 2B.

The SN74CBTR16211 has equivalent 25- series resistors to reduce signal-reflection noise. This eliminates the need for external terminating resistors.

The SN74CBTR16211 is characterized for operation from 40°C to 85°C.
