Product Details

Description



Pinout

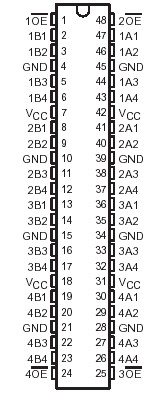

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . .0.5 V to 7 V
Input voltage range, VI (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Continuous channel current  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . .128 mA
Input clamp current, IIK (VI/O < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 mA
Package thermal impedance, JA (see Note 2): DGG package  . . . . . . . . .. . . . . . . . . . . . 70°C/W
                                                                          DGV package  . . . . . . . .  . . . . . . . . . . . . 58°C/W
                                                                          DL package  . . . . . . . . .  . . . . . . . . . . . . .63°C/W
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . .65°C to 150°C


Description

The SN74CBTR16244 provides 16 bits of high-speed TTL-compatible bus switching in a standard '16244 device pinout. The low on-state resistance of the switch allows connections to be made with minimal propagation delay.

The SN74CBTR16244 is organized as four 4-bit low-impedance switches with separate output-enable (OE) inputs. When OE is low, the switch is on, and data can flow from port A to port B, or vice versa. When OE is high, the switch is open, and a high-impedance state exists between the two ports.

The SN74CBTR16244 has equivalent 25- series resistors to reduce signal-reflection noise. This eliminates the need for external terminating resistors.

The SN74CBTR16244 is characterized for operation from 40°C to 85°C.
