SN74F00

Features: *Package Options Include Plastic Small-Outline Packages, Ceramic Chip Carriers, and Standard Plastic and Ceramic 300-mil DIPsApplicationAudio Automotive Broadband Digital Control Military Optical Networking Security Telephony Video & Imaging Wireless PinoutSpecificationsSupply voltag...

product image

SN74F00 Picture
See larger image
SeekIC No. : 004498787 Detail

SN74F00: Features: *Package Options Include Plastic Small-Outline Packages, Ceramic Chip Carriers, and Standard Plastic and Ceramic 300-mil DIPsApplicationAudio Automotive Broadband Digital Control Military ...

SN74F00 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74F00
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*Package Options Include Plastic
  Small-Outline Packages, Ceramic Chip
  Carriers, and Standard Plastic and Ceramic 300-mil DIPs


Application

Audio
Automotive
Broadband
Digital Control
Military
Optical Networking
Security
Telephony
Video & Imaging
Wireless


Pinout

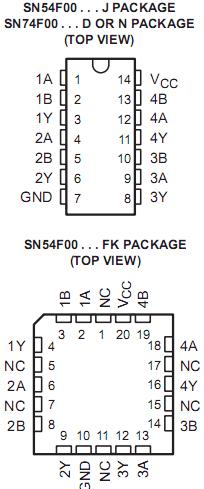

Connection Diagram


Specifications

Supply voltage range, VCC. . . . . . . . . . . . . . . . . . . .  . . . . .   0.5 V to 7 V
Input voltage range, VI (see Note 1) . . . . . . . . . . . .  . . . .    1.2 V to 7 V
Input current range  . . . . . . . . . . . . . . . . . .  . . . . . . . . .   30 mA to 5 mA
Voltage range applied to any output in the high state . . . . .0.5 V to VCC
Current into any output in the low state . . . . . .  . . . . . .  . . . . . .  .   40 mA
Operating free-air temperature range:
                                SN54F00  . . . . . . . . .  . . . . . .  . . . . 55°C to 125°C
                                SN74F00  . . . . . . . . . . . . . . . .  . . .  . . .  0°C to 70°C
Storage temperature range  . . . . . .  . . . . . .  . . . . . .  .   65°C to 150°C


Description

    The SN74F00 contain four independent 2-input NAND gates. They perform the Boolean functions Y = A • B or Y =A + B in positive logic.

    The SN74F00 is characterized for operation over the full military temperature range of 55°C to 125°C. The SN74F00 is characterized for operation from 0°C to 70°C.
