Product Details

Description



Features:

*Package Options Include Plastic
  Small-Outline Packages, Ceramic Chip
  Carriers, and Standard Plastic and Ceramic 300-mil DIPs

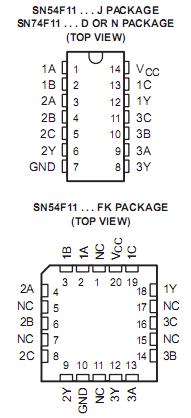

Pinout

Connection Diagram


Specifications

Supply voltage range, VCC . . . . .. . . .. . .. .. . .. .. . .. .. . .. .. . .. ..  0.5 V to 7 V
Input voltage range, VI (see Note 1)  . .. . .. .. . .. .. . . . .. . . . . . . 1.2 V to 7 V
Input current range  . . . . .. . . . .. .. . .. .. . .. .. . .. .. . .. .. . . . .   30 mA to 5 mA
Voltage range applied to any output in the high state  . . . . .. . . 0.5 V to VCC
Current into any output in the low state . . . . .. . . . . . .. . . . .. . . . . . .. .  40 mA
Operating free-air temperature range: SN54F11 . . . . .. . . .  55°C to 125°C
                                                             SN74F11  . . . . .. . . . . . .  0°C to 70°C
Storage temperature range  . . . . .. . . .. .. . .. .. . .. .. . .. .. . ..65°C to 150°C


Description

    The SN74F11 contain three independent 3-input AND gates. They perform the Boolean functions Y = A • B • C or Y = A + B + C in positive logic.

    The SN54F11 is characterized for operation over the full military temperature range of 55°C to 125°C. The SN74F11 is characterized for operation from 0°C to 70°C.
