SN74F241

Features: • 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers• Package Options Include Plastic Small-Outline Packages, Ceramic Chip Carriers, and Plastic and Ceramic DIPsPinoutSpecificationsSupply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . ....

product image

SN74F241 Picture
See larger image
SeekIC No. : 004498816 Detail

SN74F241: Features: • 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers• Package Options Include Plastic Small-Outline Packages, Ceramic Chip Carriers, and Plastic and Ceramic DIP...

SN74F241 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74F241
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers
• Package Options Include Plastic Small-Outline Packages, Ceramic Chip Carriers, and Plastic and Ceramic DIPs


Pinout

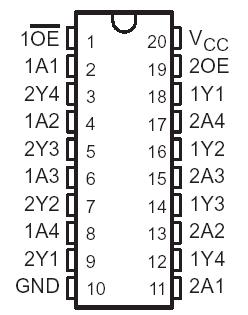

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .0.5 V to 7 V
Input voltage range, VI (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..1.2 V to 7 V
Input current range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .30 mA to 5 mA
Voltage range applied to any output in the disabled or power-off state . . .0.5 V to 5.5 V
Voltage range applied to any output in the high state . . . . . . . . . . . . . . .  . .0.5 V to VCC
Current into any output in the low state: SN54F241 . . . . . . . . . . . . . . . . . . . . . . . .  .96 mA
                                                               SN74F241 . . . . . . . . . . . . . . . . . . . . . . . . . .128 mA
Operating free-air temperature range: SN54F241 . . . . . . . . . . . . . . . .. . .55°C to 125°C
                                                             SN74F241 . . . . . . . . . . . . . . . . . . . . . .0°C to 70°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .65°C to 150°C


Description

These SN74F241 octal buffers and line drivers are designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. Taken together with the 4F240 and 4F244, these devices provide the choice of selected combinations of inverting and noninverting outputs, symmetrical OE (active-low output-enable) inputs, and complementary OE and OE inputs.

The SN54F241 is characterized for operation over the full military temperature range of 55°C to 125°C. The SN74F241 is characterized for operation from 0°C to 70°C.
