SN74F244

Supply voltage range, VCC. . ... .. .. . . ... .. . ... .. ... . . . . . . .-0.5V to 7V
Input voltage range, VI(see Note 1) . . . . . .. .. . ... . . . . . . . .-1.2V to 7V
Input current range. . . . .. .. .. . .. .. . . ... .. .. . ... .. ..  . ... -30mA to 5mA
Voltage range applied to any output in the disabled or power-off state. . .-0.5V to 5.5V
Voltage range applied to any output in the high state . . . -0.5 V to VCC
Current into any output in the low state:SN54F244 . . . . . .  . . . . .96 mA
                                                                SN74F244 . . . . . . . ..  .. 128 mA
Operating free-air temperature range: SN74F244 . . . . . . .-55 to 125
                                                             SN74F244 . . . .. .  . . .. .0 to 70
Storage temperature range . . . . . . . . . . . . . . . . . .. . . . . . .-65 to 150

      These octal buffers and line drivers of the SN74F244 are designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. Taken together with the F240 andF241, these devices provide the choice of selected combinations of inverting and noninverting outputs, symmetrical OE (active-low output-enable) inputs, and complementary OE and OE inputs.

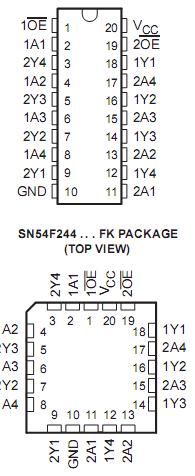

      The SN74F244 is organized as two 4-bit buffers/line drivers with separate output enable (OE) inputs. When OE is low, the device passes data from the A inputs to the Y outputs. When OE is high, the outputs are in the high-impedance state.

      The SN74F244 is available in TI!fls shrin small-outline package (DB), which provides the same I/O pin count and functionality of standard small-outline packages in less than half the printed-circuit-board area.

      The SN74F244 is characterized for operation ove the full military temperature range of -55 to125. The SN74F244 is characterized fo operation from 0 to 70.
