SN74F245

Features:

• 3-State Outputs Drive Bus Lines Directly
• Package Options Include Plastic Small-Outline (SOIC) and Shrink Small-Outline (SSOP) Packages, Ceramic Chip Carriers, and Plastic and Ceramic
   DIPs

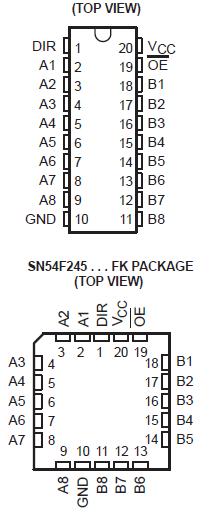

Pinout




Specifications

Supply voltage range, V_CC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Input voltage range, V_I (except I/O ports) (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2 V to 7 V
Input current range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  30 mA to 5 mA
Voltage range applied to any output in the disabled or power-off state . . . . . . . . . . . . . . 0.5 V to 5.5 V
Voltage range applied to any output in the high state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to V_CC
Current into any output in the low state: SN54F245 (A1 thru A8) . . . . . . . . . . . . . . . . . . . . . . . . . . 40 mA
                                                                 SN54F245 (B1 thru B8) . . . . . . . . . . . . . . . . . . . . . . . . . . .96 mA
                                                                 SN74F245 (A1 thru A8) . . . . . . . . . . . . . . . . . . . . . . . . . . .48 mA
                                                                 SN74F245 (B1 thru B8) . . . . . . . . . . . . . . . . . . . . . . . . . . 128 mA
Operating free-air temperature range: SN54F245 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55 to 125
                                                             SN74F245 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0 to 70
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ....65  to 150

‡ Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

NOTE 1: The input voltage ratings may be exceeded provided the input current ratings are observed.


Description

These octal bus transceivers are designed of the SN74F245 for asynchronous communication between data buses. The devices transmit data from the A bus to the B bus or from the B bus to the A bus depending upon the logic level at the direction-control (DIR) input. The output enable (OE) input can be used to disable the device so the buses are effectively isolated.

The SN74F245 is available in TI's shrink small-outline package (DB), which provides the same I/O pin count and functionality of standard small-outline packages in less than half the printed-circuit-board area.

The SN74F245 is characterized for operation over the full military temperature range of 55 to 125. The SN74F245 is characterized for operation from 0 to 70.
