SN74FB2040

Features: *Compatible With IEEE 1194.1-1991 (BTL) *TTL A Port, Backplane Transceiver Logic (BTL) B Port*Open-Collector B-Port Outputs Sink100 mA*Isolated Logic-Ground and Bus-Ground Pins Reduce Noise*BIAS VCC Pin Minimizes Signal Distortion During Live Insertion/Withdrawal*High-Impedance State Dur...

product image

SN74FB2040 Picture
See larger image
SeekIC No. : 004498859 Detail

SN74FB2040: Features: *Compatible With IEEE 1194.1-1991 (BTL) *TTL A Port, Backplane Transceiver Logic (BTL) B Port*Open-Collector B-Port Outputs Sink100 mA*Isolated Logic-Ground and Bus-Ground Pins Reduce Nois...

SN74FB2040 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74FB2040
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*Compatible With IEEE 1194.1-1991 (BTL)
*TTL A Port, Backplane Transceiver Logic (BTL) B Port
*Open-Collector B-Port Outputs Sink100 mA
*Isolated Logic-Ground and Bus-Ground
  Pins Reduce Noise
*BIAS VCC  Pin Minimizes Signal Distortion
  During Live Insertion/Withdrawal
*High-Impedance State During Power Up
  and Power Down
*BIAS VCC Pin Minimizes Signal Distortion
  During Live Insertion or Withdrawal
*B-Port Biasing Network Preconditions the
  Connector and PC Trace to the BTL
  High-Level Voltage
*Packaged in Plastic Quad Flatpack


Pinout

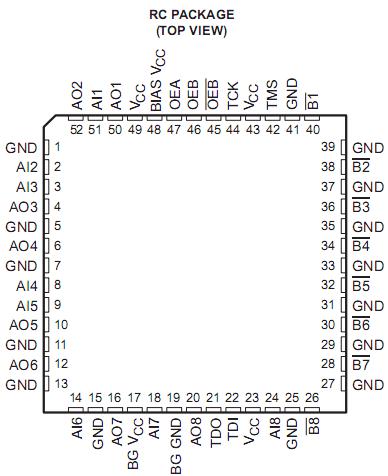

Connection Diagram


Specifications

Supply voltage range, VCC.................................-0.5 V to 7V
Input voltage range, VI:Except B port ..............-1.2 V to 7V
                                      B port .......................-1.2 V to 3.5V
Voltage range applied to any B output in the disabled
   or power-off state,VO..................................-0.5 V to 3.5V
Voltage range applied to any output in the high state,
                                            VO : A port...........-0.5 V to VCC
Input clamp current, IIK:Except B port .......................-40mA
                                      B port ...................................-18mA
Current applied to any single output in the low state, IO:
                                      A port......................................48mA
                                      B port ...................................200mA
Package thermal impedance, JA................................44/W
Storage temperature range, Tstg....................-65 to 150


Description

    The SN74FB2040 device is an 8-bit transceiver designed to translate signals between TTL and backplane transceiver logic (BTL) environments.

    The B port of the SN74FB2040 operates at BTL-signal levels. The open-collector B ports are specified to sink 100 mA. Two output enables (OEB and OEB) are provided for the B outputs. When OEB is high and OEB is low, the B port is active and reflects the inverse of the data present at the A-input pins. When OEB is low, OEB is high, or VCC is less than 2.1 V, the B port is turned off.

    The A port of the SN74FB2040 operates at TTL-signal levels and has separate input and output pins. The A outputs reflect the inverse of the data at the B port when the A-port output enable (OEA) is high. When OEA is low or when VCC is less than 2.1 V, the A outputs are in the high-impedance state.

    Pins are allocated for the four-wire IEEE Std 1149.1 (JTAG) test bus. TMS and TCK are not connected and TDI is shorted to TDO.
