Features: * Members of Texas Instruments WidebusTM Family* UBT(TM) Transceivers Combine D-Type Latches and D-Type Flip-Flops for Operation in Transparent, Latched, Clocked, or Clock-Enabled Modes* OEC(TM) Circuitry Improves Signal Integrity and Reduces Electromagnetic Interference* Translate Betwe...
SN74GTL16612: Features: * Members of Texas Instruments WidebusTM Family* UBT(TM) Transceivers Combine D-Type Latches and D-Type Flip-Flops for Operation in Transparent, Latched, Clocked, or Clock-Enabled Modes* O...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

| MIN MAX | UNIT | |||
| VCC | Supply voltage range | 3.3 V | -0.5 4.6 | V |
| 5 V | -0.5 7 | |||
| VI | Input voltage range(2) | A-port and control inputs | -0.5 7 | V |
| B port and VREF |
-0.5 4.6 | |||
| VO | Voltage range applied to any output in the high or power-off state(2) | A port | -0.5 7 | V |
| B port | -0.5 4.6 | |||
| IO | Current into any output in the low state | A port | 128 | mA |
| B port | 80 | |||
| IO | Current into any A-port output in the high state(3) | 64 | mA | |
| Continuous current through each VCC or GND |
±100 | mA | ||
| IIK | Input clamp current | VI < 0 |
-50 | mA |
| IOK | Output clamp current | VO < 0 |
-50 | mA |
| JA | Package thermal impedance(4) |
DGG package | 64 | /W |
| DL package | 56 | |||
| Tstg | Storage temperature range | -65 150 | ||

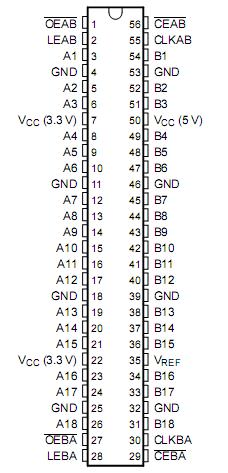

The SN74GTL16612 devices are 18-bit UBTTM transceivers that provide LVTTL-to-GTL/GTL+ and GTL/GTL+-to-LVTTL signal-level translation. They combine D-type flip-flops and D-type latches to allow for transparent, latched, clocked, and clock-enabled modes of data transfer identical to the '16601 function. The devices provide an interface between cards operating at LVTTL logic levels and a backplane operating at GTL/GTL+ signal levels. Higher-speed operation is a direct result of the reduced output swing (<1 V), reduced input threshold levels, and OEC(TM) circuitry.
The user of the SN74GTL16612 has the flexibility of using these devices at either GTL (VTT = 1.2 V and VREF = 0.8 V) or the preferredhigher noise margin GTL+ (VTT= 1.5 V and VREF = 1 V) signal levels. GTL+ is the Texas Instruments derivative of the Gunning Transceiver Logic (GTL) JEDEC standard JESD 8-3. The B port normally operates at GTL or GTL+ signal levels, while the A-port and control inputs are compatible with LVTTL logic levels and are 5-V tolerant. V is the reference input voltage for the B port.
VCC (5 V) supplies the internal and GTL circuitry while VCC (3.3 V) supplies the LVTTL output buffers.
