Product Details

Description



Pinout

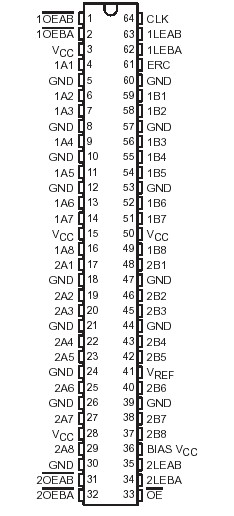

  Connection Diagram


Specifications

Supply voltage range, VCC and BIAS VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 4.6 V
Input voltage range, VI (see Note 1): A-port and control inputs . . . . . . . . . . . .. . . . . . . . 0.5 V to7 V
                                                            B port, ERC, and VREF. . . . . . . . . . . . . . . . . . . . .  0.5 V to 4.6 V
Voltage range applied to any output in the high or power-off state, VO
   (see Note 1): A port  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
                         B port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . 0.5 V to 4.6 V
Voltage range applied to any output in the high or low state, VO
   (see Note 1): A port  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . 0.5 V to VCC + 0.5 V
                         B port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 4.6 V

Current into any output in the low state, IO: A port  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .48 mA
                                                                       B port  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200 mA
Current into any A-port output in the high state, IO (see Note 2) . . . . . . . . . . . .  . . . . . . . . .. . .   .48mA
Continuous current through each VCC or GND. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . ±100 mA
Input clamp current, IIK (VI < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . .  . . . . .50 mA
Output clamp current, IOK (VO < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 mA
Package thermal impedance, JA (see Note 3). . . . . . .. . . . . .  . . . . . . . . . . . . . . . . . . . . .  . . . . .. .55°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . 65°C to 150°C



Description

The SN74GTLPH1655 is a high-drive 16-bit universal bus transceiver (UBT) that provides LVTTL-to-GTL+ and GTL+-to-LVTTL signal-level translation. It is partitioned as two 8-bit transceivers and allows for transparent, latched, and clocked modes of data transfer similar to the '16501 function. The device provides a high-speed interface between cards operating at LVTTL logic levels and a backplane operating at GTL+ signal levels. High-speed (about two times faster than standard LVTTL or TTL) backplane operation is a direct result of GTLP's reduced output swing (<1 V), reduced input threshold levels, improved differential input, and output edge control (OECTM). Improved GTLP OEC circuits minimize bus settling time and have been designed and tested using several backplane models. The high drive is suitable for driving double-terminated low-impedance backplanes using incident-wave switching.

GTL+ is the Texas Instruments derivative of the Gunning transceiver logic (GTL) JEDEC standard JESD 8-3. The AC specification of the SN74GTLPH1655 is given only at the preferred higher noise margin GTL+, but the user has the flexibility of using this device at either GTL (VTT = 1.2 V and VREF = 0.8 V) or GTL+ (VTT = 1.5 V and VREF = 1 V) signal levels.

Normally, the B port operates at GTL or GTL+ levels, while the A-port and control inputs are compatible with LVTTL logic levels and are 5-V tolerant. VREF is the reference input voltage for the B port.

This SN74GTLPH1655 is fully specified for live-insertion applications using Ioff, power-up 3-state, and BIAS VCC. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The power-up 3-state circuitry places the outputs in the high-impedance state during power up and power down, which prevents driver conflict. The BIAS VCC circuitry precharges and preconditions the B-port input/output connections, preventing disturbance of active data on the backplane during card insertion or removal, and permits true live-insertion capability.

High-drive GTLP backplane interface devices feature adjustable edge-rate control (ERC). Changing the ERC input voltage between GND and VCC adjusts the B-port output rise and fall times. This allows the designer to optimize system data-transfer rate and signal integrity to the backplane load.

Active bus-hold circuitry holds unused or undriven LVTTL inputs at a valid logic state. Use of pullup or pulldown resistors with the bus-hold circuitry is not recommended.

When VCC of the SN74GTLPH1655  is between 0 and 1.5 V, the device is in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.5 V, the output-enable (OE) input should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

The SN74GTLPH1655 is characterized for operation from 40°C to 85°C.
