Product Details

Description



Pinout

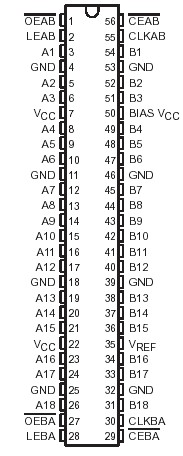

Connection Diagram




Specifications

Supply voltage range, VCC and BIAS VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 4.6 V
Input voltage range, VI (see Note 1): A-port and control inputs . . . . . . . . . . . .. . . . . . . . 0.5 V to7 V
B port and VREF. . . . . . . . . . . . . . . . . .. . . . . . . 0.5 V to4.6 V
Voltage range applied to any output in the high or power-off state, VO
(see Note 1): A port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
B port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . .0.5 V to 4.6 V
Current into any output in the low state, IO: A port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48 mA
B port . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . .100 mA
Current into any A-port output in the high state, IO (see Note 2) . . . . . . . . . . . . . . . . . . . . .. . . .48mA
Continuous current through each VCC or GND. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .±100 mA
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . .50 mA
Output clamp current, IOK (VO < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 mA
Package thermal impedance, JA (see Note 3):DGG package . . . . . . . . . . . . . . . . . . . . . . . . . .. . 64°C/W
DGV package . . . . . . . . . . . . . . . . . . . . . . . . . . . .48°C/W
DL package . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..56°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . .65°C to 150°C




Description

The SN74GTLPH16912 is a medium-drive 18-bit universal bus transceiver (UBT) that provides LVTTL-to-GTL+ and GTL+-to-LVTTL signal-level translation. It allows for transparent, latched,clocked, and clock-enabled modes of data transfer identical to the '16601 function.

Features of the SN74GTLPH16912 are:(1) LVTTL interfaces are 5-V tolerant; (2) identical to '6601 function; (3) medium-drive GTL+ outputs (50 mA); (4) GTL+ rise and fall times designed for optimal data-transfer rate and signal integrity; (5) Ioff, power-up 3-state, and BIAS VCC support live insertion; (6) bus hold on a-port data inputs; (7) distributed VCC and GND-pin configuration minimizes high-speed switching noise.

The absolute maximum ratings of the SN74GTLPH16912 can be summarized as:(1): supply voltage range, VCC is 0.5 V to 4.6 V; (5): input clamp current, IIK (VI < 0) is 50 mA; (6): output clamp current, IOK (VO < 0 ) is -50 mA.
