SN74HCT14

Features: *Inputs Are TTL-Voltage Compatible*Package Options Include Plastic Small-Outline (D), Shrink Small-Outline (DB), Thin Very Small-Outline (DGV), Thin Shrink Small-Outline (PW), and Ceramic Flat (W) Packages, Ceramic Chip Carriers (FK), and Standard Plastic (N) and Ceramic (J) DIPsPinoutSp...

product image

SN74HCT14 Picture
See larger image
SeekIC No. : 004498981 Detail

SN74HCT14: Features: *Inputs Are TTL-Voltage Compatible*Package Options Include Plastic Small-Outline (D), Shrink Small-Outline (DB), Thin Very Small-Outline (DGV), Thin Shrink Small-Outline (PW), and Ceramic ...

SN74HCT14 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74HCT14
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*Inputs Are TTL-Voltage Compatible
*Package Options Include Plastic
  Small-Outline (D), Shrink Small-Outline
  (DB), Thin Very Small-Outline (DGV), Thin
  Shrink Small-Outline (PW), and Ceramic
  Flat (W) Packages, Ceramic Chip Carriers
  (FK), and Standard Plastic (N) and Ceramic (J) DIPs


Pinout

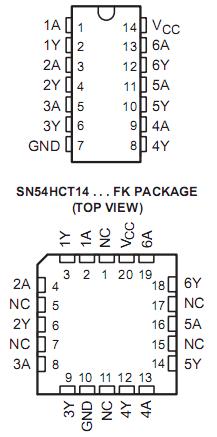

Connection Diagram


Specifications

Supply voltage range, VCC   . . . . . . .  . . . . . . . . . . . . . . .. . 0.5 V to 7 V
Input voltage range, VI (see Note 1)  . . . . . .. . . . . 0.5 V to VCC +0.5 V
Output voltage range, VO (see Note 1). . . . . . . .. . 0.5 V to VCC +0.5 V
Input clamp current, IIK (VI < 0 or VI > VCC). . . . . . . . . . . . .  . . . ±20 mA
Output clamp current, IOK (VO < 0 or VO > VCC)  . . . . . . . . . . . .. .±20 mA
Continuous output current, IO (VO = 0 to VCC)  . . . . . . . . . . . . . . ±25 mA
Continuous current through VCC or GND. . . .. . . . . . . . . . . . . . . . ±50 mA
Package thermal impedance, JA (see Note 2): D package . . . . . 86°C/W
                                                                           DB package .. .  ..96°C/W
                                                                           DGV package  . .127°C/W
                                                                           N package   . . . . .80°C/W
                                                                           PW package   . . 113°C/W
Storage temperature range, Tstg  . . . . . . . . . . .. . . . . . .65°C to 150°C


Description

      The SN74HCT14 devices contain six independent inverters. The devices perform the Boolean function Y = A in positive logic.

      The SN74HCT14 is characterized for operation over the full military temperature range of 55°C to 125°C. The SN74HCT14 is characterized for operation from 40°C to 85°C.
