SN74HCT244

Features: Operating Voltage Range of 4.5 V to 5.5 VHigh-Current Outputs Drive Up To 15 LSTTL LoadsLow Power Consumption, 80-A Max ICCTypical tPD = 13 ns±6-mA Output Drive at 5 VLow Input Current of 1 A MaxInputs Are TTL-Voltage Compatible3-State Outputs Drive Bus Lines or Buffer Memory Address Reg...

product image

SN74HCT244 Picture
See larger image
SeekIC No. : 004498983 Detail

SN74HCT244: Features: Operating Voltage Range of 4.5 V to 5.5 VHigh-Current Outputs Drive Up To 15 LSTTL LoadsLow Power Consumption, 80-A Max ICCTypical tPD = 13 ns±6-mA Output Drive at 5 VLow Input Current of ...

SN74HCT244 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74HCT244
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Operating Voltage Range of 4.5 V to 5.5 V
High-Current Outputs Drive Up To 15 LSTTL Loads
Low Power Consumption, 80-A Max ICC
Typical tPD = 13 ns
±6-mA Output Drive at 5 V
Low Input Current of 1 A Max
Inputs Are TTL-Voltage Compatible
3-State Outputs Drive Bus Lines or Buffer Memory Address Registers


Application

Audio
Automotive
Broadband
Digital Control
Military
Optical Networking
Security
Telephony
Video & Imaging
Wireless


Pinout

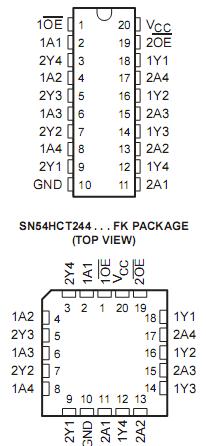

Connection Diagram


Specifications

Supply voltage range, VCC  . . . . . . . . .  . . . . . . . . . . . . . . -0.5 V to 7 V
Input clamp current, IIK(VI< 0 or VI > VCC ) (see Note 1) . . . . ±20 mA
Output clamp current, IOK(VO< 0 or VO> VCC ) (see Note 1) . . ±20 mA
Continuous output current, IO(VO  = 0 to VCC ) . . .. . .. . .. . . . .±35 mA
Continuous current through VCC or GND  . . .. .. . .. . . .. . .. .  .. .±70 mA
Package thermal impedance, JA(see Note 2): D package . . . .. 70/W
                                                                         DB package . .... 58/W
                                                                         N package ........ 69/W
                                                                         Ns package .......60/W
                                                                         PW package ......83/W
Storage temperature range, Tstg . .. .. .. . .. .. .. . .. ....... -65 to 150


Description

      These octal buffers and line drivers of the SN74HCT244 are designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The'HCT244 devices are organize as two 4-bit buffers/drivers with separate output-enable (OE) inputs. When OE is low, the device passes noninverted data from the A inputs to the Y outputs. When OE is high, the outputs are in the high-impedance state.
