SN74HCT374

Features: *Operating Voltage Range of 4.5 V to 5.5 V*High-Current 3-State True Outputs Can Drive Up To 15 LSTTL Loads*Low Power Consumption, 80-A Max ICC*Typical tpd = 22 ns*±6-mA Output Drive at 5 V*Low Input Current of 1 A Max*Inputs Are TTL-Voltage Compatible*Eight D-Type Flip-Flops in a Single...

product image

SN74HCT374 Picture
See larger image
SeekIC No. : 004498991 Detail

SN74HCT374: Features: *Operating Voltage Range of 4.5 V to 5.5 V*High-Current 3-State True Outputs Can Drive Up To 15 LSTTL Loads*Low Power Consumption, 80-A Max ICC*Typical tpd = 22 ns*±6-mA Output Drive at 5 ...

SN74HCT374 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74HCT374
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*Operating Voltage Range of 4.5 V to 5.5 V
*High-Current 3-State True Outputs Can
  Drive Up To 15 LSTTL Loads
*Low Power Consumption, 80-A Max ICC
*Typical tpd = 22 ns
*±6-mA Output Drive at 5 V
*Low Input Current of 1 A Max
*Inputs Are TTL-Voltage Compatible
*Eight D-Type Flip-Flops in a Single Package
*Full Parallel Access for Loading


Application

Audio
Automotive
Broadband
Digital Control
Military
Optical Networking
Security
Telephony
Video & Imaging
Wireless


Pinout

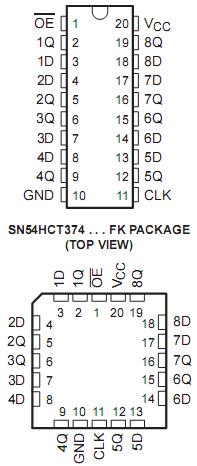

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . .  . . . . . . . . . . . . . . . . . . . . -0.5 V to 7 V
Input voltage range, VI(see Note 1)  . . . . . . . . . . . . . . . . . . .-0.5 V to 7 V
Output voltage range, VO(see Note 1)  . . .  . . . .. . .-0.5 V to VCC  + 0.5 V
Input clamp current, IIK (VI < 0)  . . . . . . . . . . . . . . . . . . . . . . . . ..±20 mA
Output clamp current, IOK(VO < 0 or VO > VCC )  . . . . . . . . . . . . . ±20 mA
Continuous output current, IO(VO  = 0 to VCC)  . . . . .  . . . . . . . . .±35 mA
Continuous current through VCC or GND  . . . . . . . . . . . . . . . . . . . ±70 mA
Package thermal impedance, JA(see Note 2):DB package . . . . . . 70/W
                                                                         DW package . . .. . .58/W
                                                                         N package. . .. . . ...69/W
                                                                         NS package. . .. . . .60/W
                                                                         PW package. . .. . . 83/W
Storage temperature range, Tstg. . . . . . . . . . . . . . . . . . . . .-65 to 150


Description

    These 8-bit flip-flops feature 3-state outputs designed specifically for driving highly capacitive or relatively low impedance loads. They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.

    The eight flip-flops of the SN74HCT374 devices ar edge-triggered D-type flip-flops. On the positive transition of the clock (CLK) input, the Q outputs are set to the logic levels that were set up at the data (D) inputs.

    An output-enable (OE) input of the SN74HCT374 places the eight outputs in either a normal logic state (high or lowlogic levels) or the high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state and increased drive provide the capability to drive bus lines without interface or pullup components.
