SN74LS125AN

Buffers & Line Drivers Tri-State Quad Bus

product image

SN74LS125AN Picture
See larger image
SeekIC No. : 00404554 Detail

SN74LS125AN: Buffers & Line Drivers Tri-State Quad Bus

SN74LS125AN Data Sheet

floor Price/Ceiling Price

US $ .31~.45 / Piece | Get Latest Price
Part Number:
SN74LS125AN
Mfg:
Texas Instruments
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • Unit Price
  • $.45
  • $.41
  • $.35
  • $.31
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Number of Input Lines : 4 Number of Output Lines : 4
Polarity : Non-Inverting Supply Voltage - Max : 5.25 V
Supply Voltage - Min : 4.75 V Maximum Operating Temperature : + 70 C
Mounting Style : Through Hole Package / Case : PDIP-14
Packaging : Tube

Description

Polarity : Non-Inverting
Number of Input Lines : 4
Number of Output Lines : 4
Packaging : Tube
Mounting Style : Through Hole
Maximum Operating Temperature : + 70 C
Supply Voltage - Max : 5.25 V
Supply Voltage - Min : 4.75 V
Package / Case : PDIP-14


Pinout

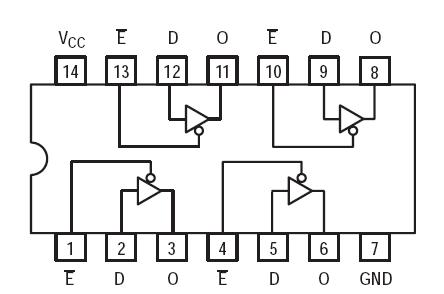

Connection Diagram


Specifications

Symbol Parameter Min Typ Max Unit
VCC Supply Voltage
4.75
5.0
5.25		 V
TA Operating Ambient Temperature Range
0
25
70		 °C
IOH Output Current - High
2.6		 mA
IOL Output Current - Low
24		 mA






Parameters:

Technical/Catalog InformationSN74LS125AN
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
Logic TypeLine Driver, Non-Inverting
Package / Case14-DIP (300 mil)
PackagingTube
Mounting TypeThrough Hole
Number of Bits per Element1
Number of Elements4 - Quad
Operating Temperature0°C ~ 70°C
Voltage - Supply4.75 V ~ 5.25 V
Current - Output High, Low5.2mA, 16mA
Drawing Number296; 4040049; N; 14, 16, 18, 20
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names SN74LS125AN
SN74LS125AN
296 1638 5 ND
29616385ND
296-1638-5
